Recreating the Lisp keyboard (10 years later)
-
darkcruix
- Location: Germany
- Main keyboard: Brand New Model F F77 Keyboard
- Main mouse: Logitech MX Master
- Favorite switch: Ellipse version of Buckling Spring / BeamSpring
- DT Pro Member: 0209
I am working on a snug fit wrist rest as well in the same design. Still testing the variants before I get it done in the proper color. Here's what I have so far:
-
lispnick
- Location: Czechia
- Main keyboard: Keymacs A620N-88 Rev. A
- Main mouse: Kensington SlimBlade Trackball
- Favorite switch: Alps SKCM Orange
- Contact:
I guess it is time to post some updates.
I have substantially extended the profile set. It now includes, among other things, everything that can be found on ANSI/ISO full keyboards. The convex profile includes shorter spacebars and convex modifiers as I have promised. Since the set of supported key sizes is quite large, I will probably make and post a comprehensible ‘spec sheet’ later. For those who are curious, these are the classic (concave) modifiers:
… and these are the convex ones:
I have substantially extended the profile set. It now includes, among other things, everything that can be found on ANSI/ISO full keyboards. The convex profile includes shorter spacebars and convex modifiers as I have promised. Since the set of supported key sizes is quite large, I will probably make and post a comprehensible ‘spec sheet’ later. For those who are curious, these are the classic (concave) modifiers:… and these are the convex ones:
-
lispnick
- Location: Czechia
- Main keyboard: Keymacs A620N-88 Rev. A
- Main mouse: Kensington SlimBlade Trackball
- Favorite switch: Alps SKCM Orange
- Contact:
Almost, … it is just two small steps away. I need to figure out the final pricing and set up a ‘product web’ again. Besides that, everything is ready and tested. Full size ANSI or TKL with MX or Alps mounts is not a problem. I hope to add a support for Topre as well but the mount is harder to make because of its geometry (I will need a bespoke end-mill for that and currently I am in the middle of the reverse-engineering process).engr wrote: 09 Apr 2024, 20:25 Wait, does it mean that there is a full-size ANSI 104 keyset available for purchase? And/or a full-size or TKL keyboard with ANSI layout?
-
lispnick
- Location: Czechia
- Main keyboard: Keymacs A620N-88 Rev. A
- Main mouse: Kensington SlimBlade Trackball
- Favorite switch: Alps SKCM Orange
- Contact:

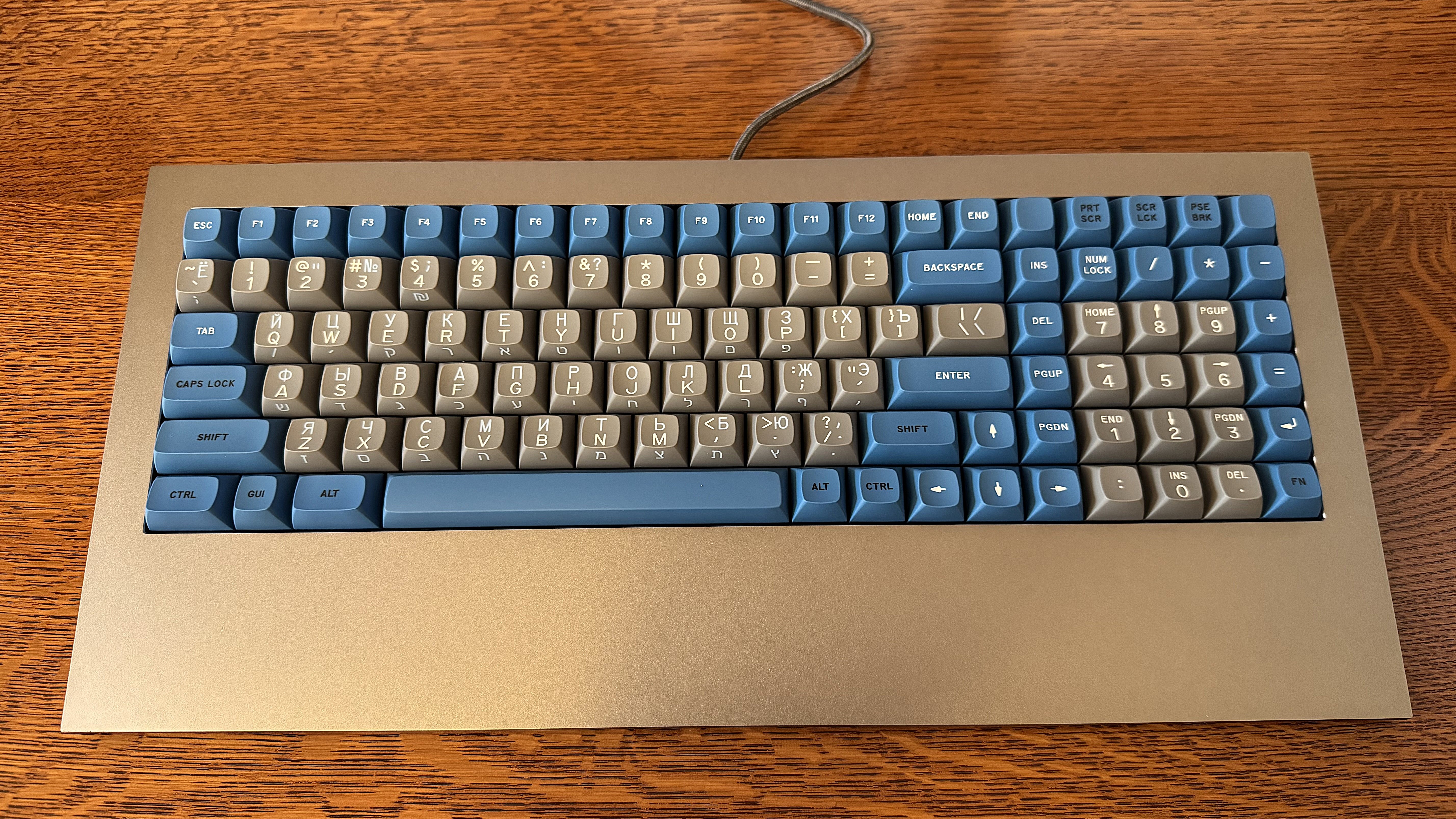

I have added new legend options to my keyboard kits:
This is a render but I am currently finishing two sets with triple-shot Cadet legends. Also, I have put a limited number of NOS blue alps in the stock.
This is a render but I am currently finishing two sets with triple-shot Cadet legends. Also, I have put a limited number of NOS blue alps in the stock.
-
lispnick
- Location: Czechia
- Main keyboard: Keymacs A620N-88 Rev. A
- Main mouse: Kensington SlimBlade Trackball
- Favorite switch: Alps SKCM Orange
- Contact:
… and this is how it looks after four rounds of resin casting and four rounds of CNC milling:
The final step remains—milling the mount and separating the keycap from its base. The time spent on the manufacturing is slightly over 2 hours per keycap (the design of the legends is not included, of course). And, yes, it is going to be German QWERTZ ISO.
The final step remains—milling the mount and separating the keycap from its base. The time spent on the manufacturing is slightly over 2 hours per keycap (the design of the legends is not included, of course). And, yes, it is going to be German QWERTZ ISO.
