Unknown Keyboard

[10ko]

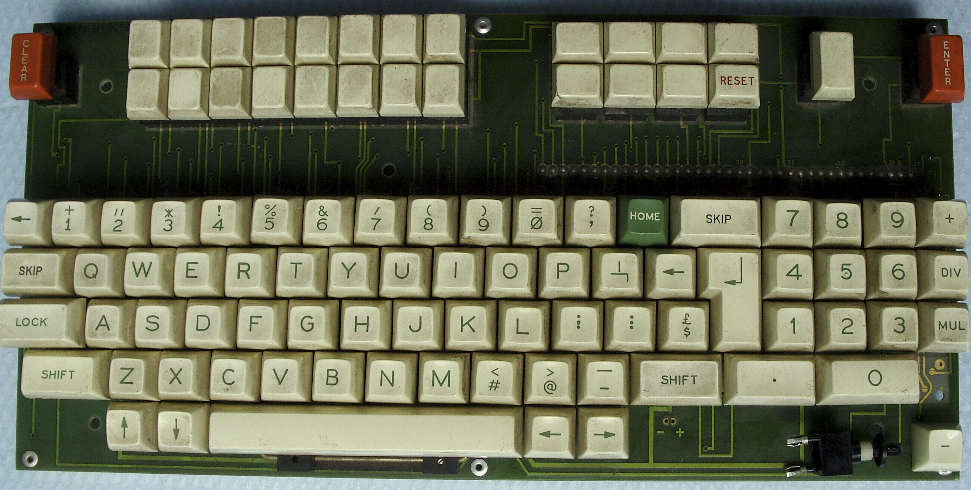

Hi guys,

Where is it from?


Thanks

[terrycherry]

Good to see your rare keyboard. If you make the good focusing to the switch directly, it could be easily to determine.

[Chyros]

I suspect it's from the UK, with the " under 2 and with a pound sign on it. Do you own this keyboard? What kind of switches does it have?

[seebart]

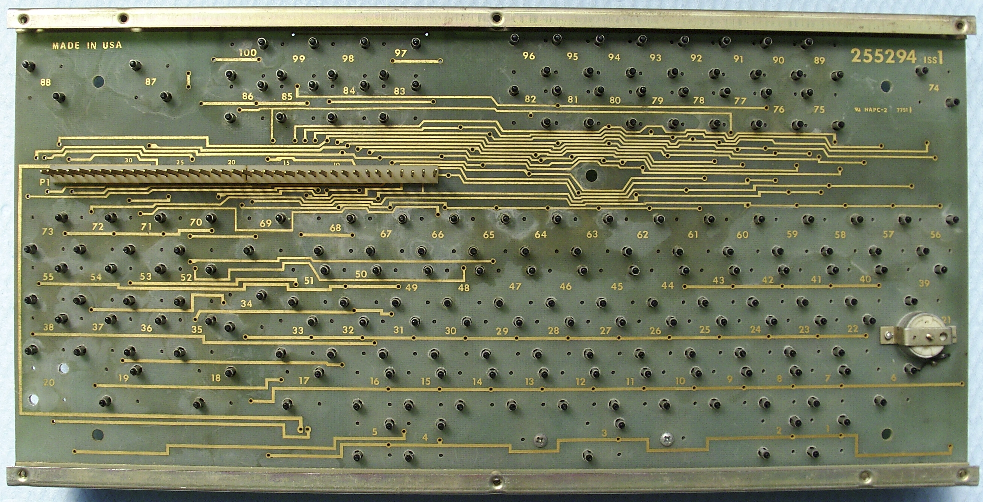

Carefully pull a keycap and get a good shot of the switch if possible. Very interesting layout. Also the back of the PCB could shed some light.

[10ko]



[seebart]

Hmm still hard to tell for me. Key Tronic foam and foil?

http://deskthority.net/wiki/Key_Tronic_foam_and_foil

[10ko]

Usual electro mechanical (of course) contact over PCB.Look at right by zero.

[Madhias]

I can't help with the keyboard identification, but I do see a Futura font face on the PCB.

[terrycherry]

what a strange keyboard I ever seen.
The slider look like the key tronic only. Nope to say what kind is that dirty boy.
Tactile or linear?

It might be the electrostatic or magnetic switch keyboard. Looks like an various of IMS international keyboard...
http://mousefan.telcontar.net/image/IMS.htm

[andrewjoy]

Your a dirty boy! Dirty Dirty boy!

It does look a bit foil on foam is to me but i have never seen one with a pin thorough the PCB like that , strange.

[seebart]

mr_a500, HaaTa or dorkvader need to have a look at this.

[terrycherry]

or the contact of the slider like Haata owns: Quotron 855 - Scantlin Switches

http://deskthority.net/external-f34/bes ... t4455.html

[seebart]

or the contact of the slider like Haata owns: Quotron 855 - Scantlin Switches

Then it's a rare one.

[10ko]



That's all.

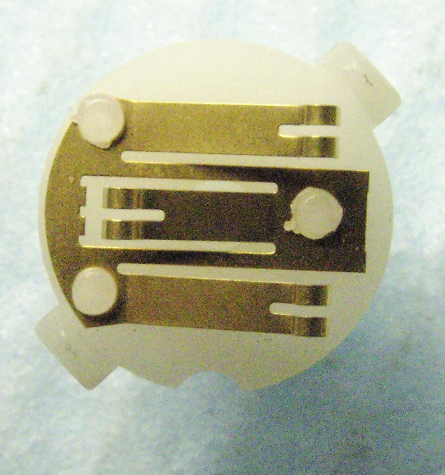

[HaaTa]

Neat. Never seen this one before.

Definitely a contact leaf.

[Muirium]

Achievement Unlocked: HaaTa Didn't Get There First.

Noteworthy!

[terrycherry]

The mystery cursor key situation doesn't mentioned at
http://deskthority.net/wiki/Cursor_keys
