[GB] NCR-80 R2 (TKL)

jiujiu · 22 Oct 2021, 11:03

Hello guys!
I'm jiujiu from China.I love keyboard.
This time we have used Injection Mold recreate G81-3007(TKL).You can choose Hotswap-PCB or Solder-PCB with Bluetooth.We made carbon-fiber plate.
I hope you will love it.
We sold it on Alibaba and ZFrontier.

https://en.zfrontier.com/products/po-nc ... 9433064526

If you use Tencent QQ ,you can seach the group number 286987434(RyeWorks),and join us. Also my e-mail address is xyj569435903@163.com.

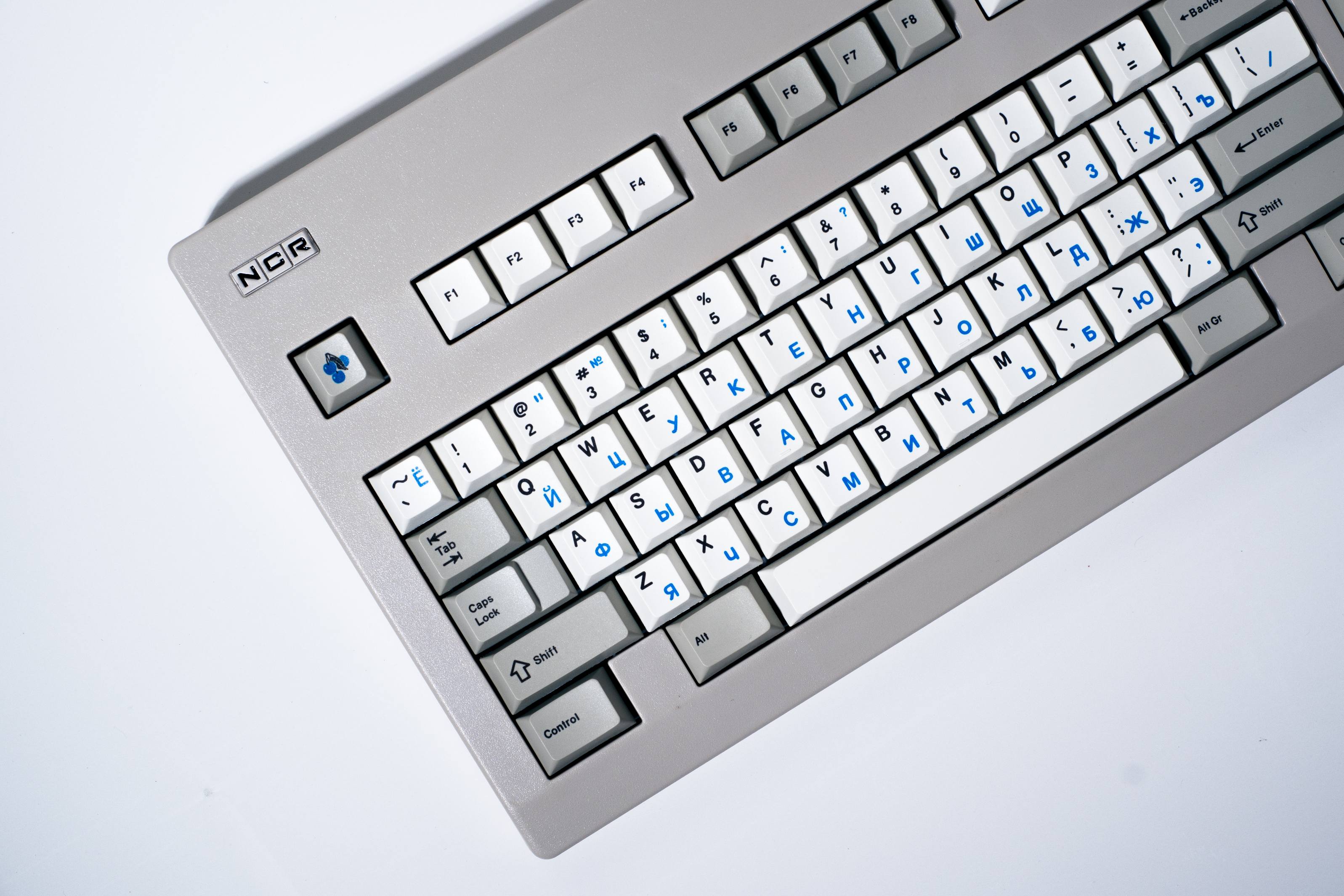

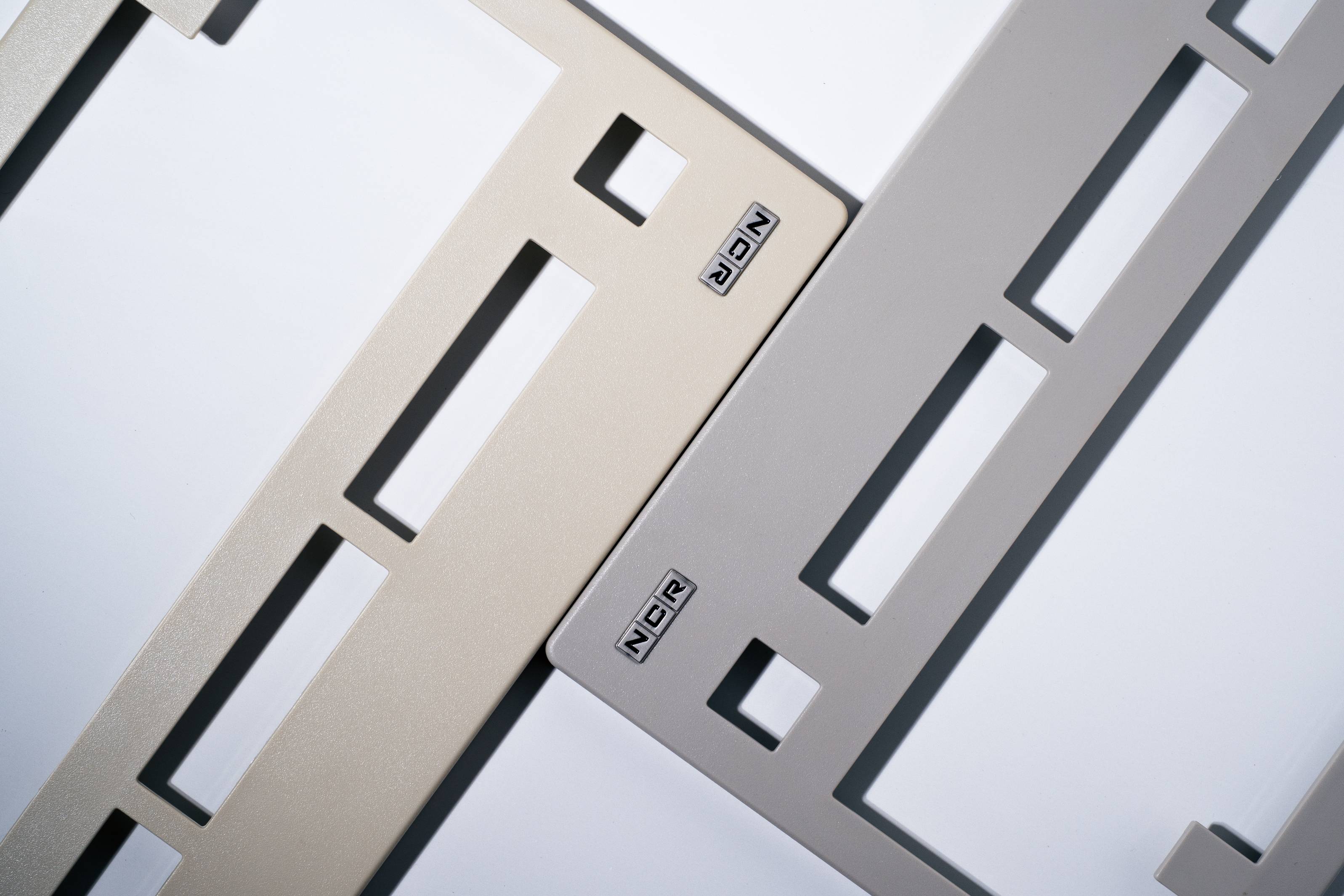

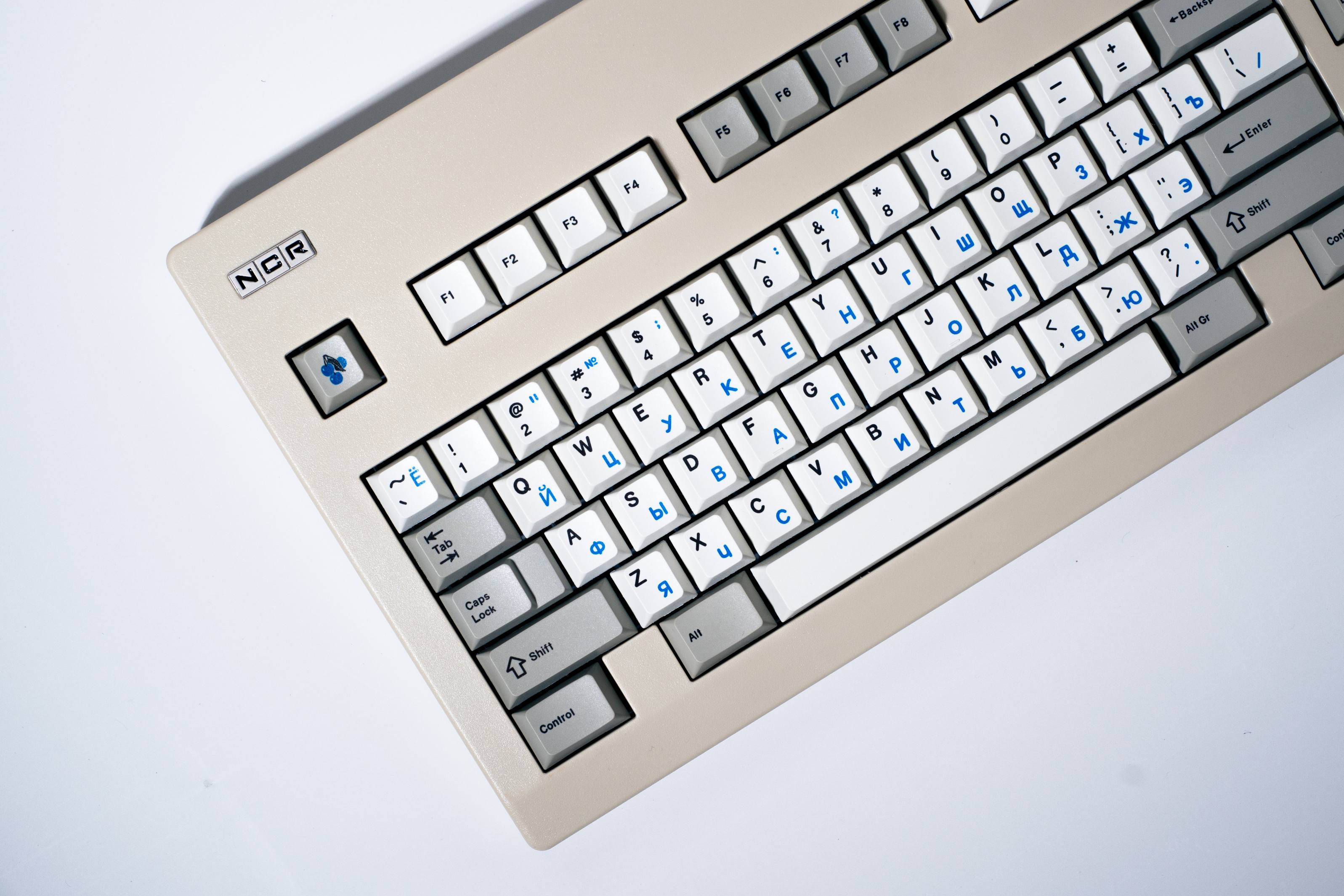

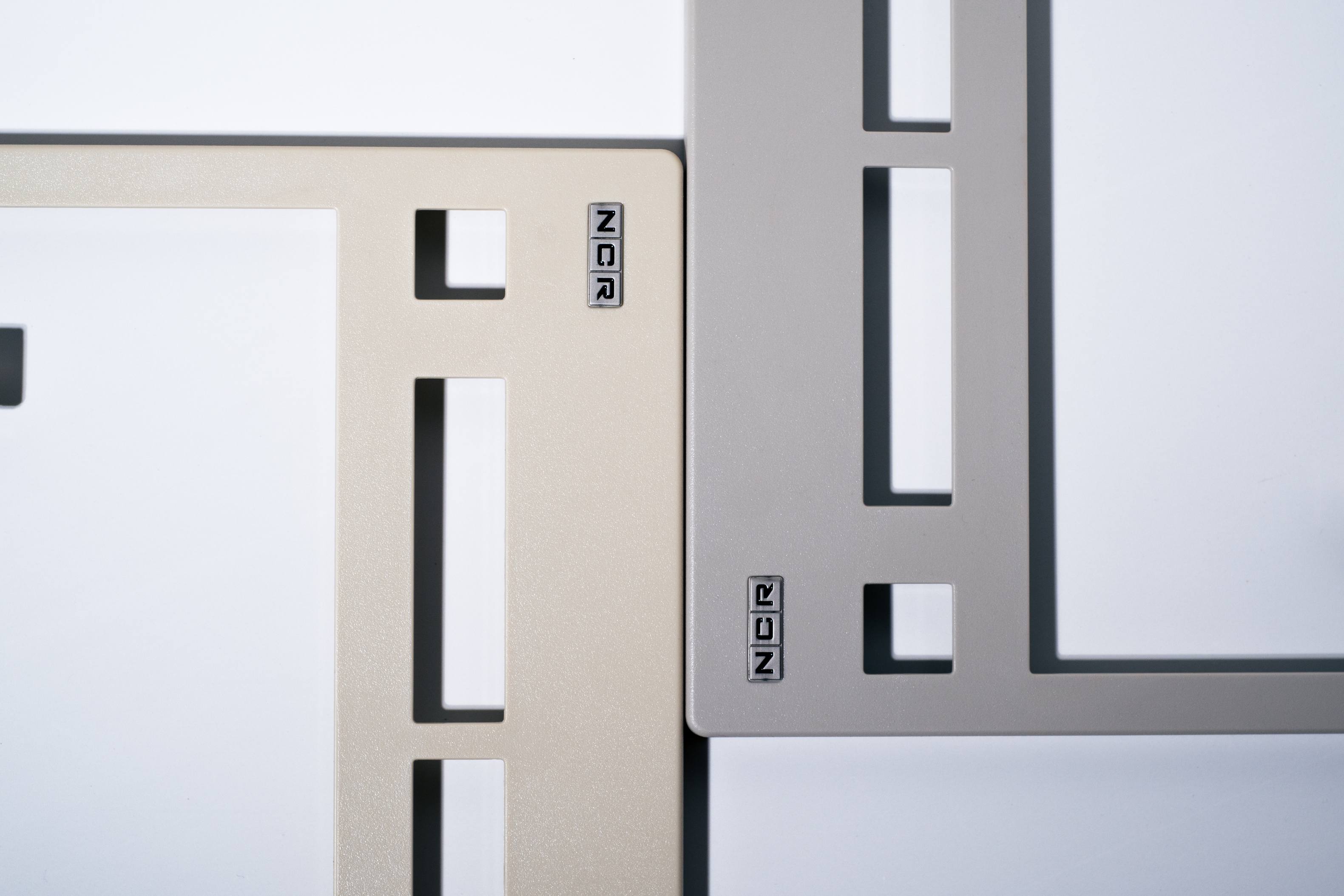

Show some pictures!

Muirium · 22 Oct 2021, 12:58

Looks nice. The dark one with hotswap switches tempts me.

Now, about those caps: are they included too?

SK-8K · 23 Oct 2021, 19:02

Amazing job. Thank you for helping to keep vintage keyboard styling alive.
Very good price too.

jiujiu · 25 Oct 2021, 05:06

Muirium wrote: ↑
22 Oct 2021, 12:58
Looks nice. The dark one with hotswap switches tempts me.

Now, about those caps: are they included too?

noway，unincluded those caps，hh

jiujiu · 25 Oct 2021, 05:07

SK-8K wrote: ↑
23 Oct 2021, 19:02
Amazing job. Thank you for helping to keep vintage keyboard styling alive.
Very good price too.

hh，Thanks

mode1ace · 27 Oct 2021, 15:56

So I got my alps build together.

Please do consider posting CAD to help people do their own PCBs and plates, just where the mounting holes are relative to the key blocks would be immensely helpful, it took us a couple of revisions to get a pcb to fit!

FYI, it's relatively easy to take the WKL blockers off if you so choose, I used some side cutters to get most of them off, then box knife to shave it flush.

photekq · 27 Oct 2021, 17:18

Do you think you'll ever sell a case top without LED window? I want prt sc, scroll lock and pause!

jjman2212 · 26 Aug 2022, 10:15

mode1ace wrote: ↑
27 Oct 2021, 15:56

So I got my alps build together.

Please do consider posting CAD to help people do their own PCBs and plates, just where the mounting holes are relative to the key blocks would be immensely helpful, it took us a couple of revisions to get a pcb to fit!

FYI, it's relatively easy to take the WKL blockers off if you so choose, I used some side cutters to get most of them off, then box knife to shave it flush.

old thread but did you have the file for the pcb you that ended up fitting uploaded? first thing i thought of with this board was to do an alps build, pcbs the only issue

also if you had a sound test id be really interested in hearing it!
