Please refer to the mother GB thread which can be found here

Introduction

Note: this post will be updated. As such it shall be considered work in progress. A change log is shown at the end.
Last change 2025.01.01 (yyyy.mm.dd)


The inserts are considered priority 2, being 0 the highest priority.
As such, at this stage it is important to record constraints that would affect specifications of other components.

Constraints

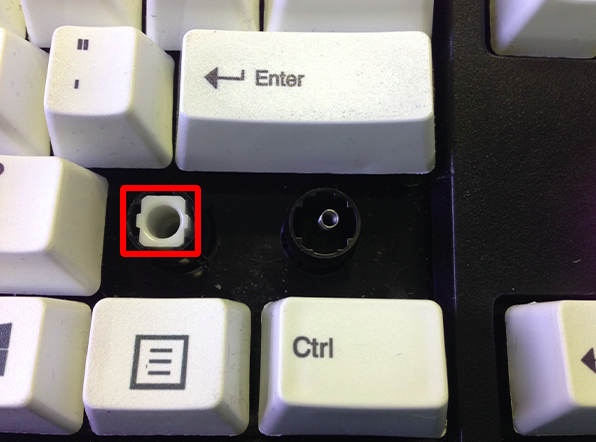

• Interface to the barrel and the keycap

Alternatives to be considered

• Easy to design, 3D print and test in any IBM like keyboard - tolerance shall be respected
• Mass production

--- change log (yyyy.mm.dd) ---

Spoiler:

2025.01.01 - initial version
2025.01.01 - updates to align to overall project concept (e.g. priorities, constraints, options added)
