Siemens PG750's keyboard

[jensma]

Happy to shere another keyboard for the (or any other) wiki. Pics are public domain/use them as you wish.

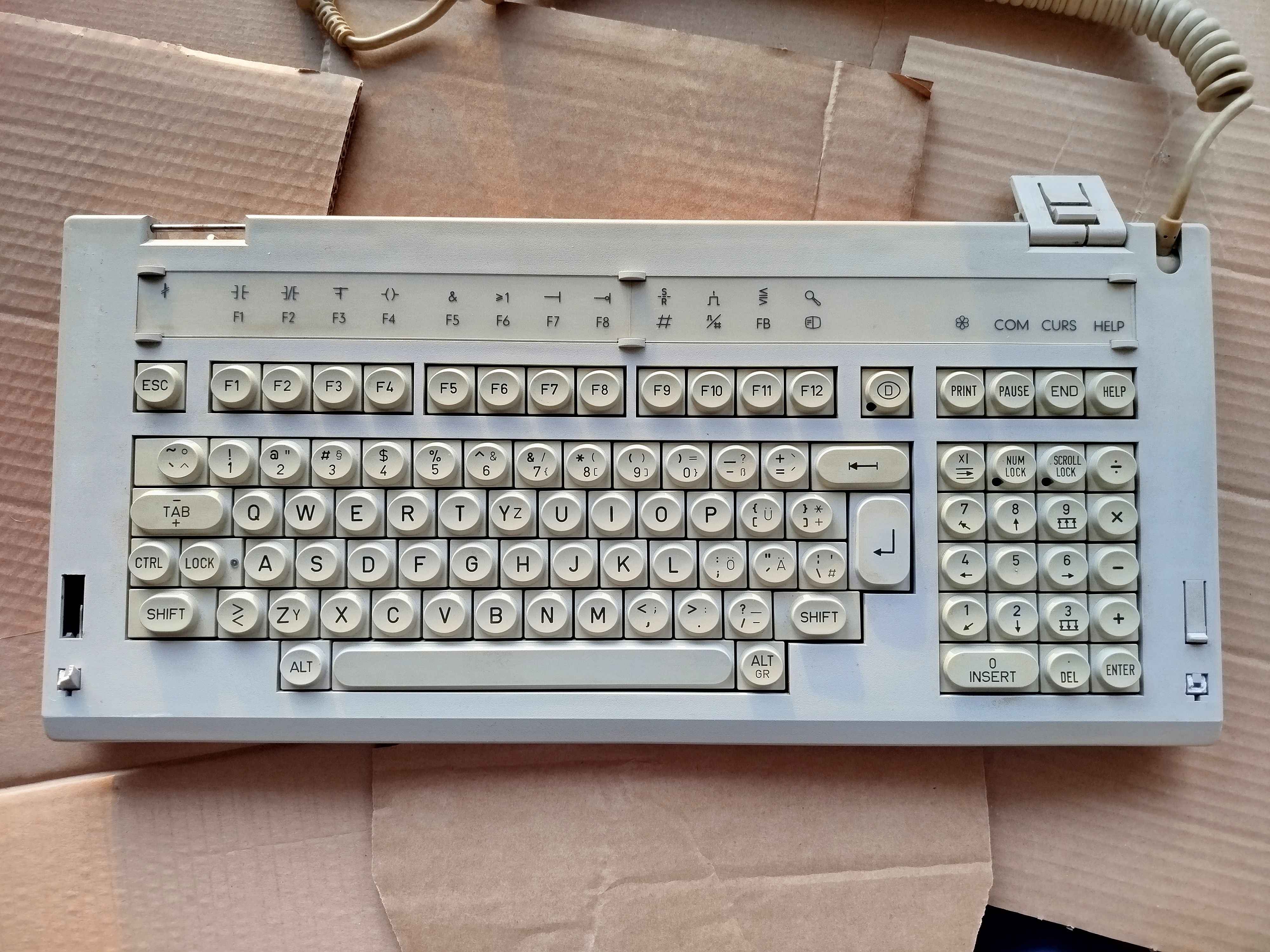

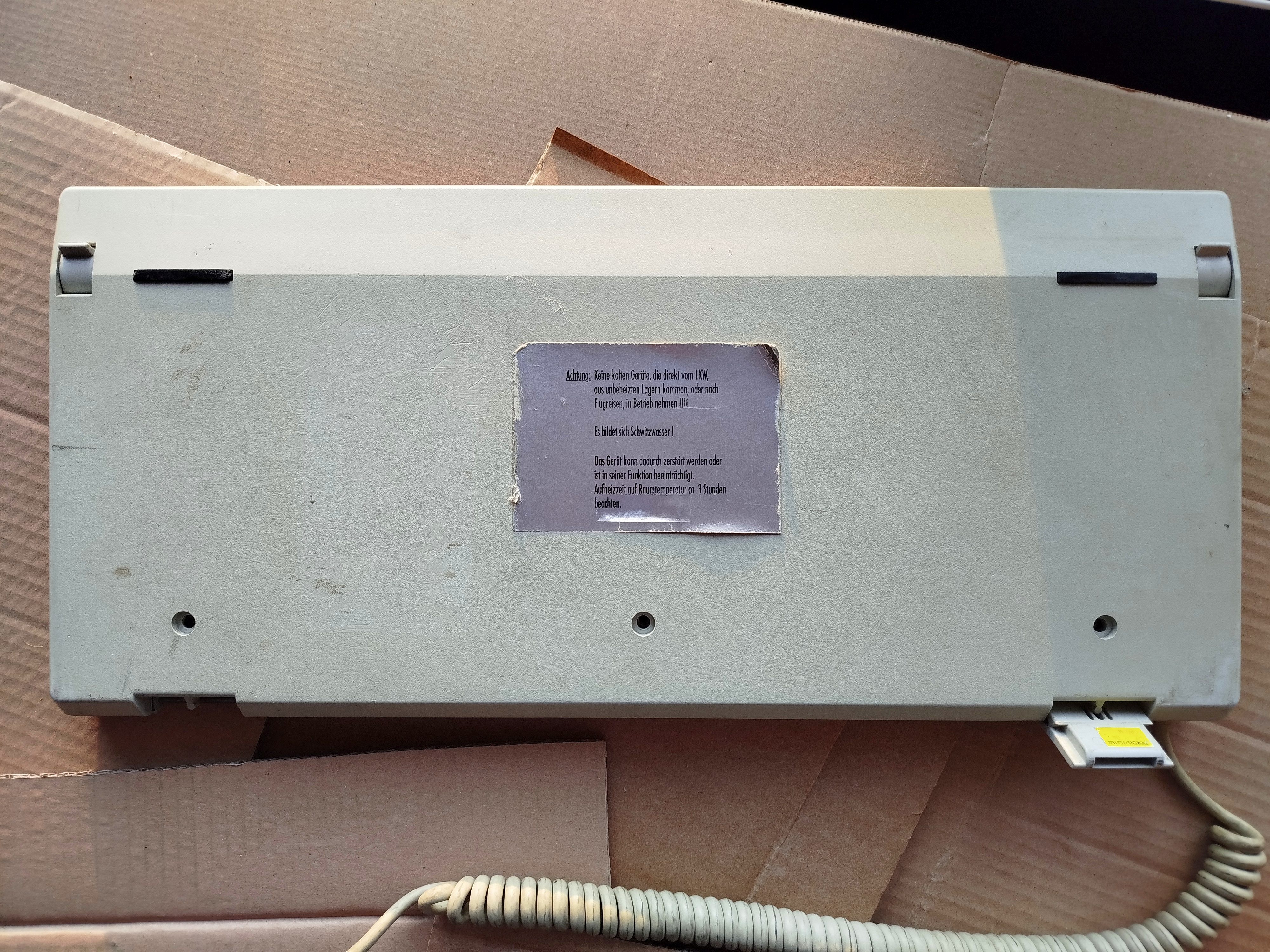

The keyboard is of a Siemens PG750 luggable computer.














[jensma]

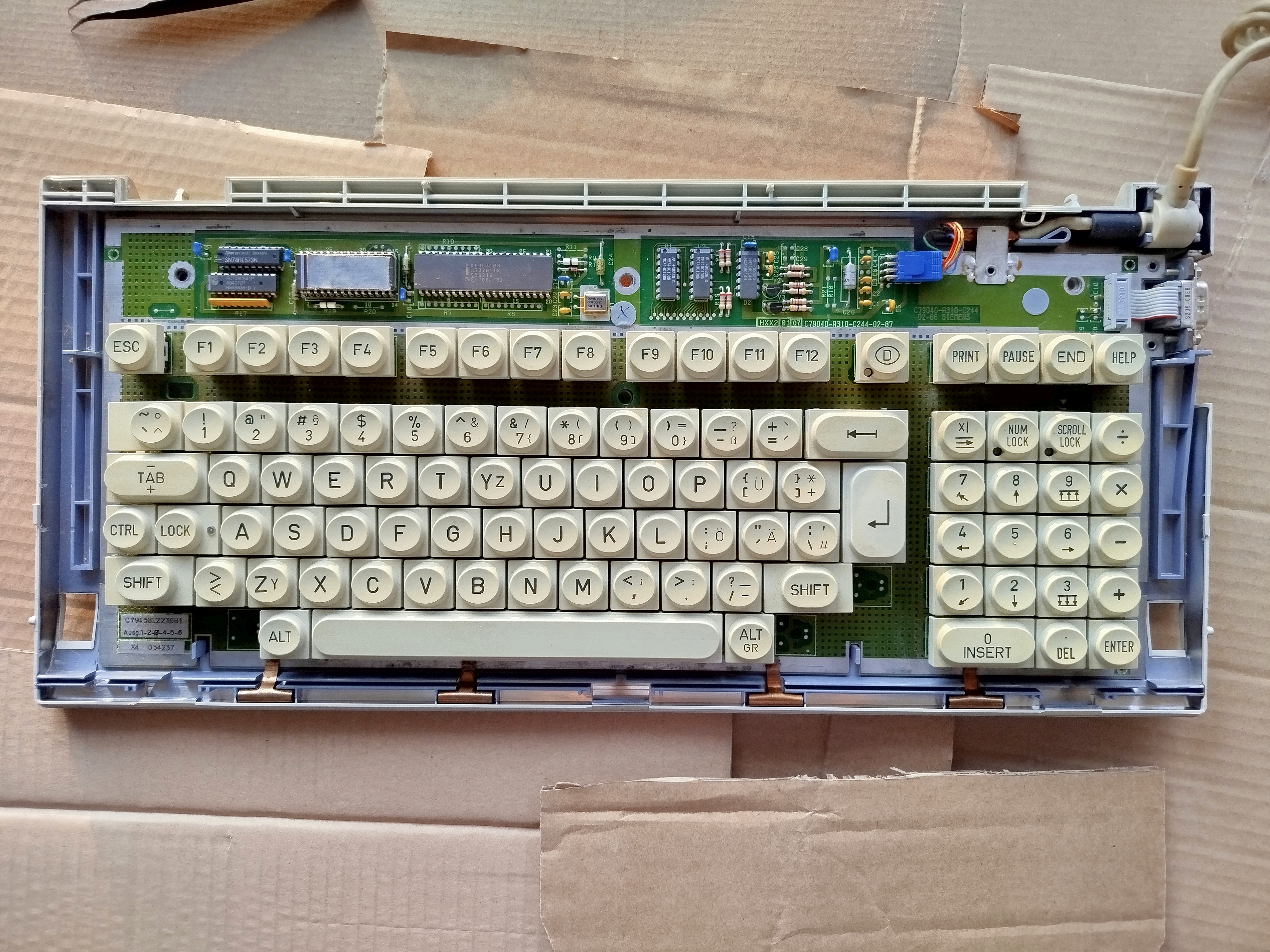

Note it got heavily damaged in transport.

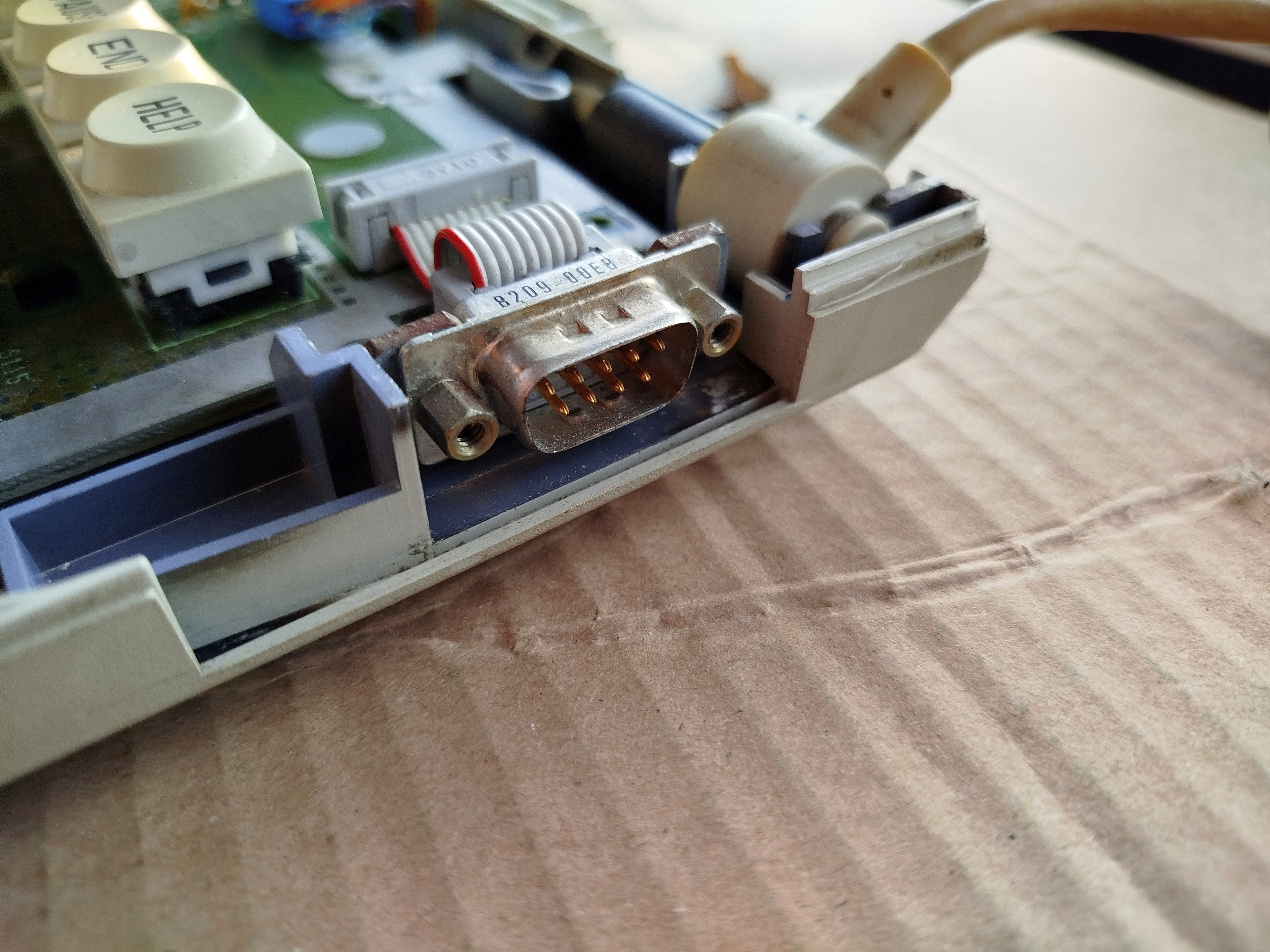

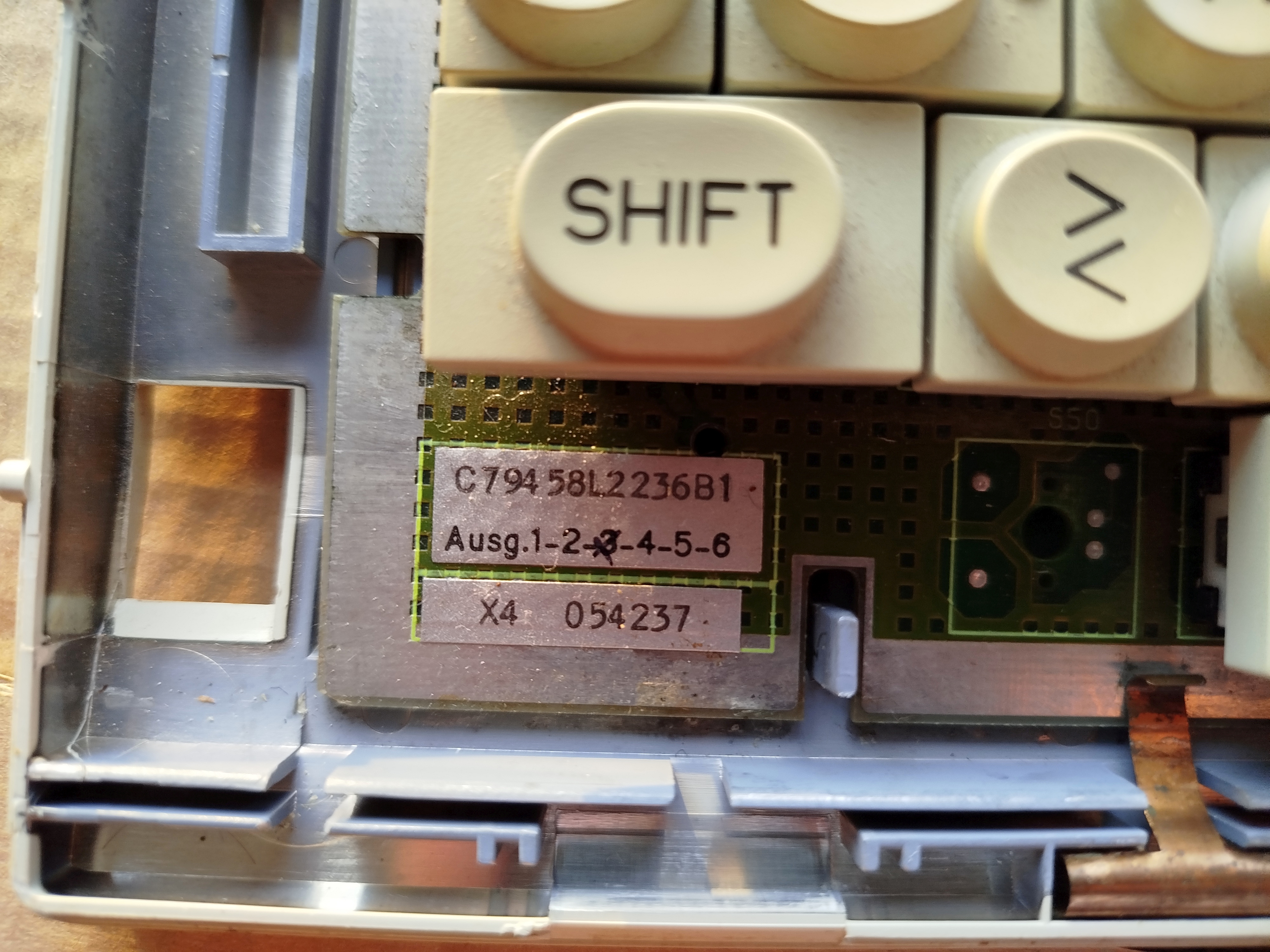

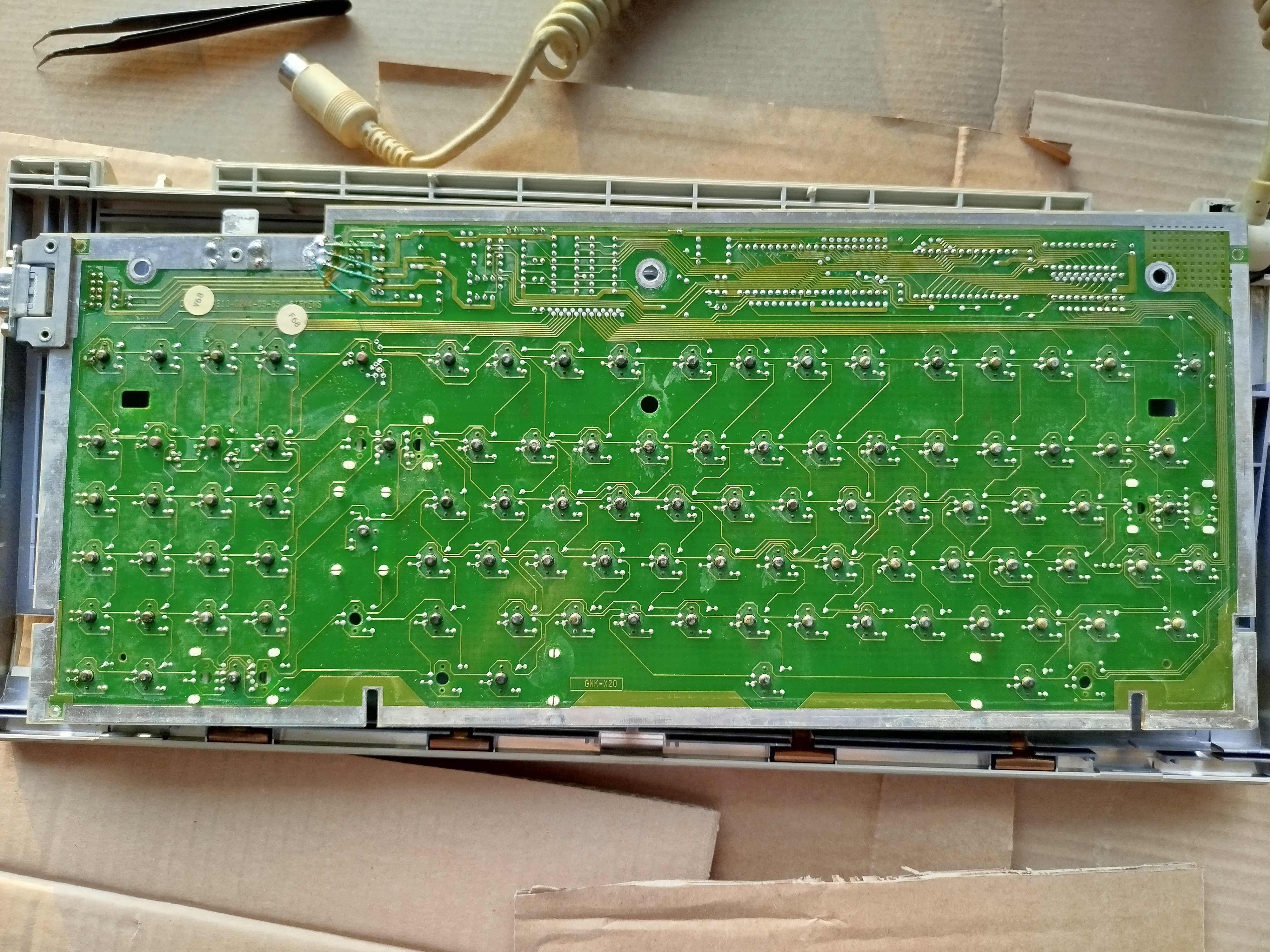

The serial looking port at the side is blocked off, you have to diassamble the keyboard to access it.

[jensma]

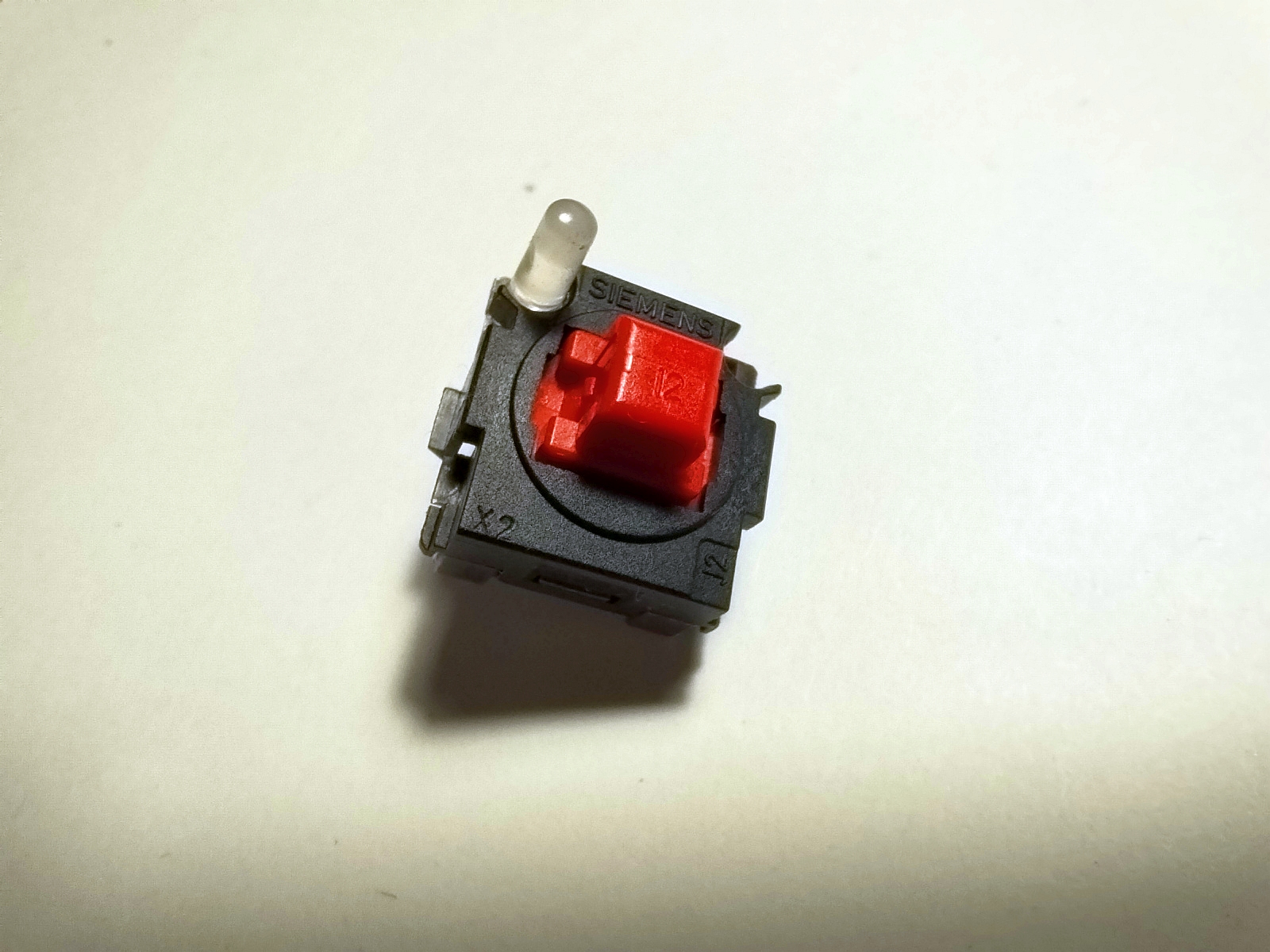

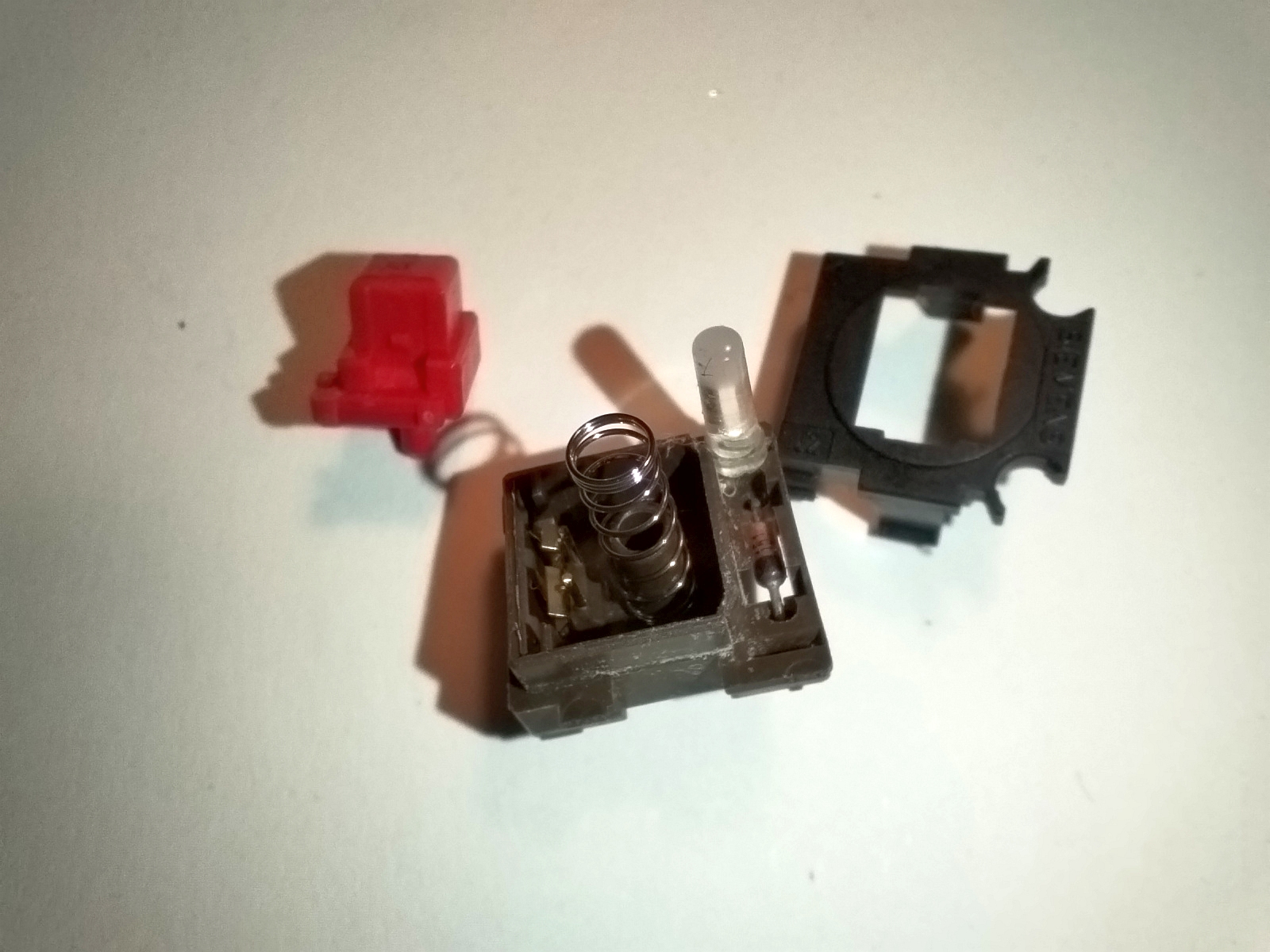

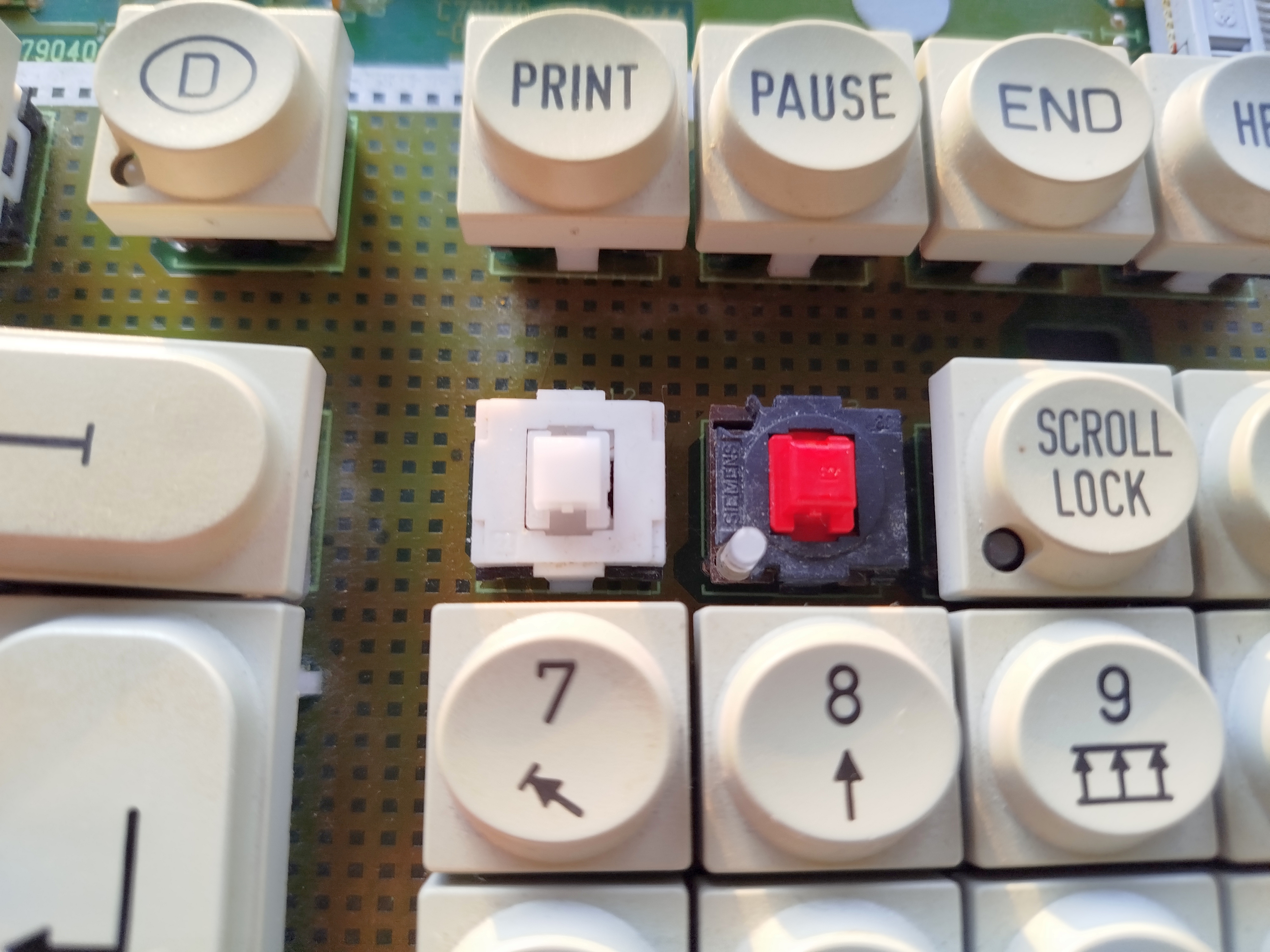

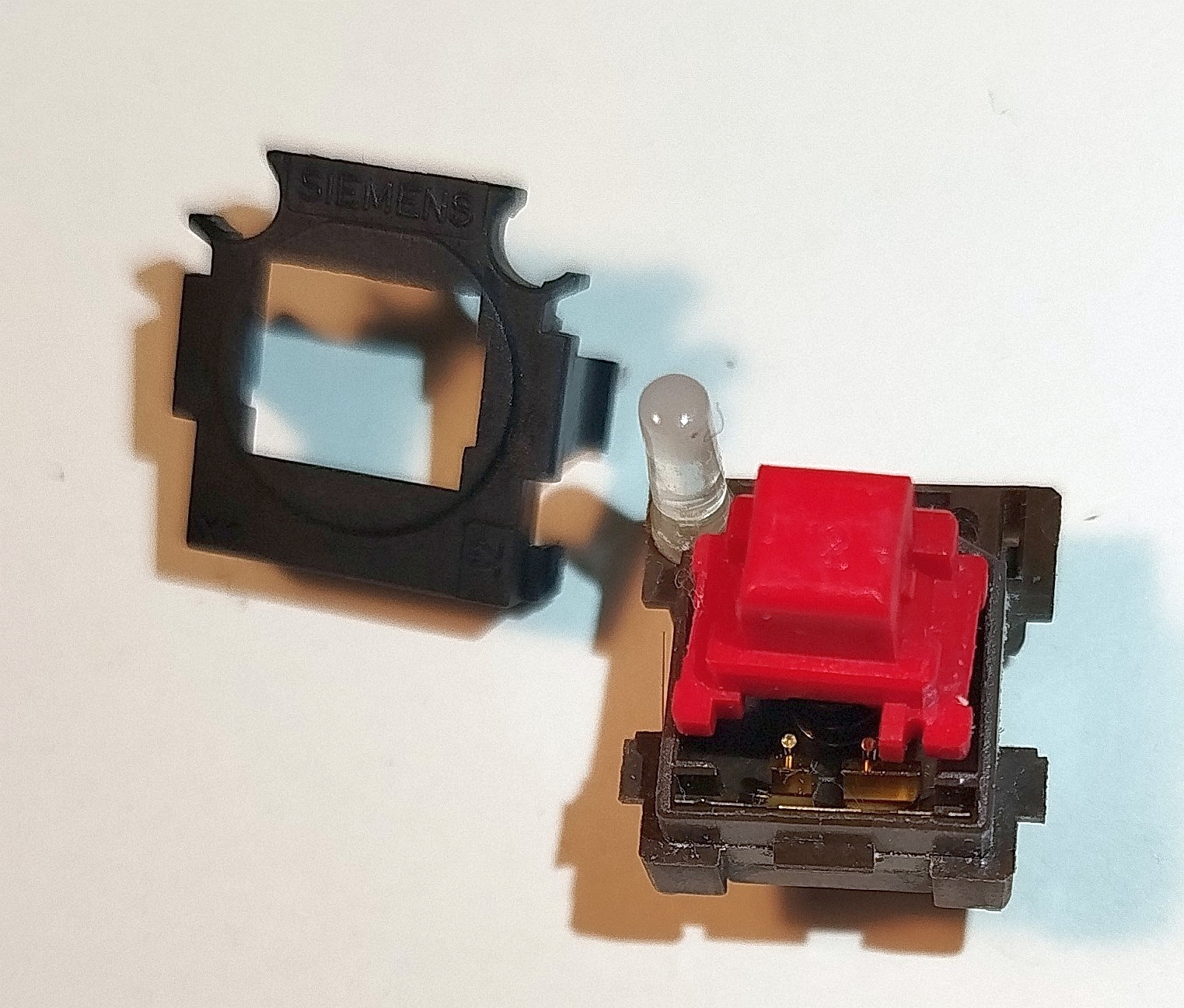

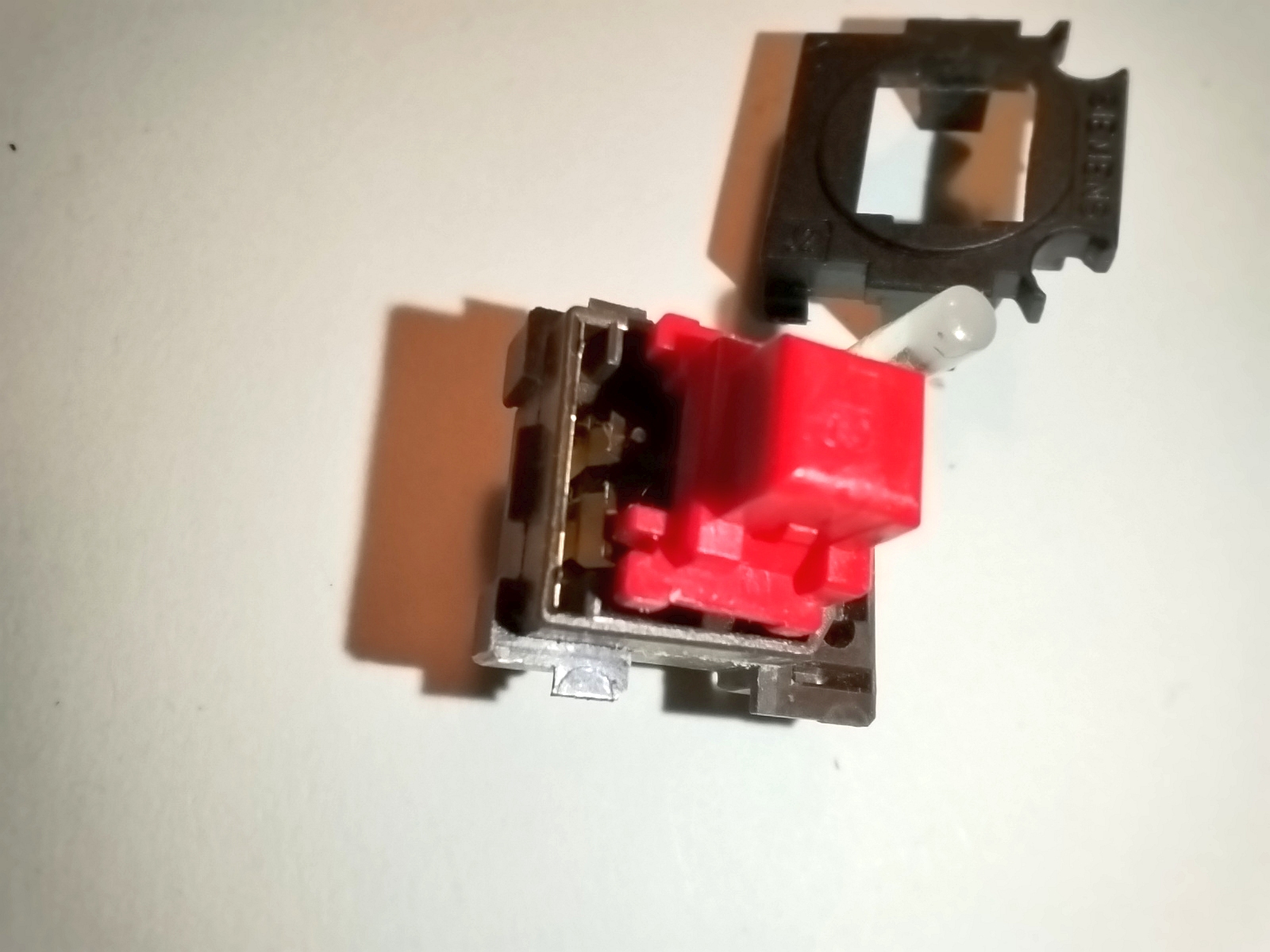

One of the red keys:





[AndyJ]

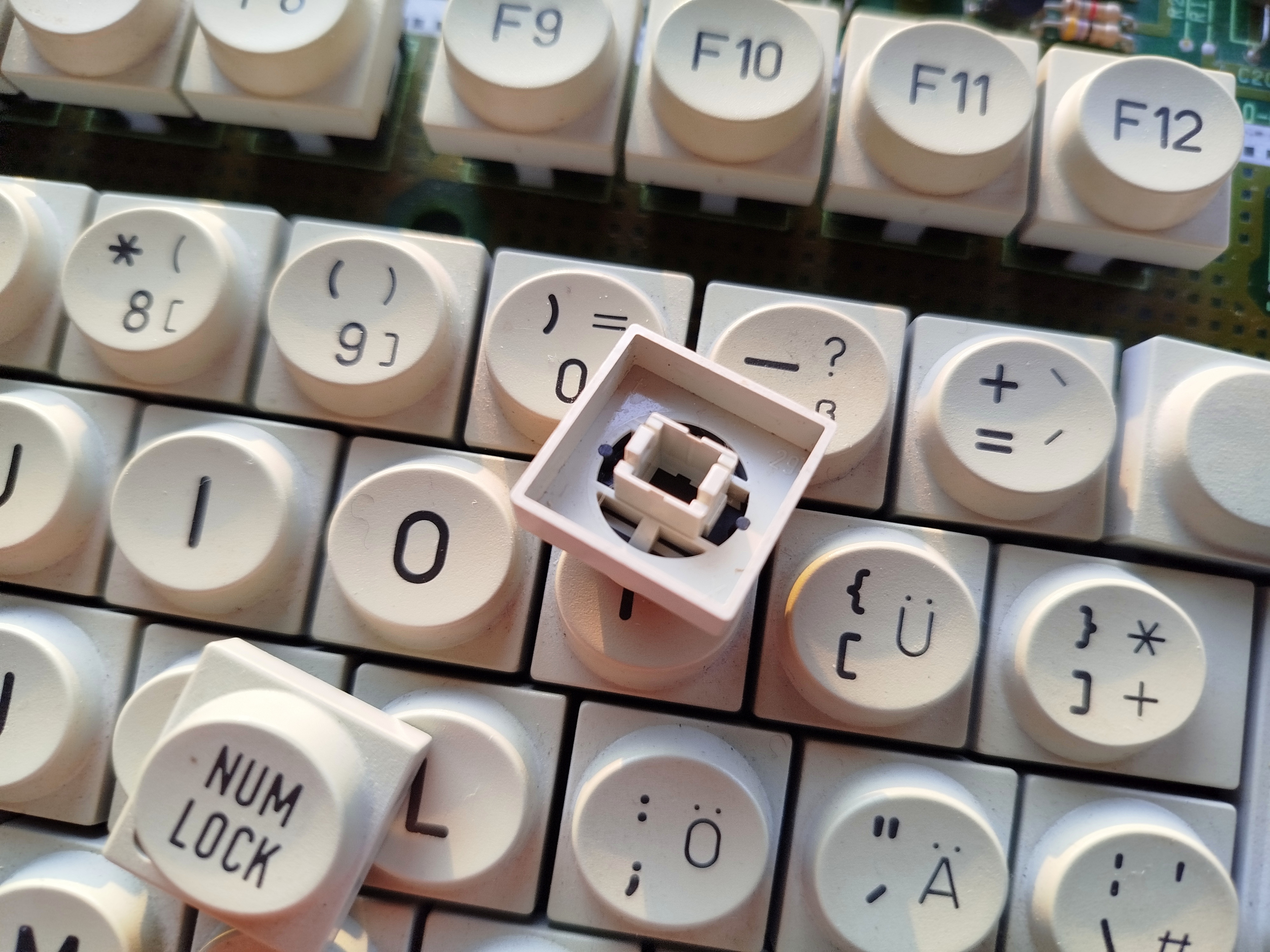

I've never seen elliptical keycaps before! I think I like them.

[rsbseb]

Interesting Keyboard, what do you have planned for it? Parts, Display, Restoration?
