Prototype version 0.1




I will order a 2nd prototype series.


You can also preorder controllers and diodes:

Code: Select all

Order-ID      | Price |  Pcs|Description
HYPER/MICRO/P1| 20 EUR|    1|Prototype PCB (5x12)
TEENSY20      | 22 EUR|    1|Teensy 2.0 controller <--- you need this for the HyperMicro!
TEENSY31      | 28 EUR|    1|Teensy 3.1 controller
TEENSYPP      | 32 EUR|    1|Teensy++ 2.0 controller

Code: Select all

Order-ID      | Price |  Pcs|Description
DIODE10       |  1 EUR|   10|1N4148 diodes (10)
DIODE100      |  3 EUR|  100|1N4148 diodes (100) <--- you need about these many for 2 HyperMicro-s!
DIODE150      |  4 EUR|  150|1N4148 diodes (150)
DIODE500      |  8 EUR|  500|1N4148 diodes (500)
DIODE1K       | 12 EUR| 1000|1N4148 diodes (1k)
DIODE2K       | 23 EUR| 2000|1N4148 diodes (2k)
DIODE5K       | 55 EUR| 5000|1N4148 diodes (5k)
DIODE10K      |105 EUR|10000|1N4148 diodes (10k)

Code: Select all

Order-ID      | Price |  Pcs|Description
STAB200       |  2 EUR|    1|Cherry plate mount stab 2-2.75u
STAB203       |  5 EUR|    3|Cherry plate mount stab ISO-TKL
STAB204       |  6 EUR|    4|Cherry plate mount stab ANSI-TKL
STAB206       |  8 EUR|    6|Cherry plate mount stab ISO-102
STAB207       |  9 EUR|    7|Cherry plate mount stab ANSI-101
STAB400       |  2 EUR|    1|Cherry plate mount stab 4u
STAB625       |  2 EUR|    1|Cherry plate mount stab 6.25u
STAB700       |  2 EUR|    1|Cherry plate mount stab 7u

Code: Select all

Order-ID             |Price |Description
HYPER/MICRO/7BIT     |10 EUR|normal_plate
HYPER/MICRO/ANSI100  |10 EUR|normal_plate
HYPER/MICRO/ANSI400  |10 EUR|normal_plate
HYPER/MICRO/ANSI400M |10 EUR|normal_plate
HYPER/MICRO/ANSI625  |10 EUR|normal_plate
HYPER/MICRO/ANSI700  |10 EUR|normal_plate
HYPER/MICRO/SYM100   |10 EUR|normal_plate
HYPER/MICRO/SYM400   |10 EUR|normal_plate
HYPER/MICRO/SYM700   |10 EUR|normal_plate
HYPER/MICRO/7BITH    |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/ANSI100H |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/ANSI400H |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/ANSI400MH|10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/ANSI625H |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/ANSI700H |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/SYM100H  |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/SYM400H  |10 EUR|plate_with_trackpoint-hole
HYPER/MICRO/SYM700H  |10 EUR|plate_with_trackpoint-hole

All Hyper keyboards for CherryMX switches have the mount holes for PCB-mount switches!



Submitting an order works the usual way,
by pm-ing user CherryMX
HYPER/MICRO/P1
HYPER/MICRO/ANSI700H
STAB700
TEENSY20
MXCLEAR/NW 45
MXGREY/NW
DIODE100
ypur e-mail address
ADDRESS
your shipping address
with name
street,
town and
country




Shipping is 4 EUR, no matter how many PCBs, switches, or key caps you order!

[quochung1989]

Where do I study more about Hypermicro?

[7bit]

http://deskthority.net/workshop-f7/hype ... t9454.html
http://deskthority.net/workshop-f7/hype ... t8490.html

[quochung1989]

http://deskthority.net/workshop-f7/hype ... t9454.html
http://deskthority.net/workshop-f7/hype ... t8490.html

Ok. Thanks 7bit. But I sure it's not my favour

[scottc]

7bit, how many version 0.1 prototypes are left? What has changed in the 0.2 prototype?

[7bit]

0.1 is the one I will order, 0.2 will never exist because I'm fully confident that everything will be OK in version 0.1!


The differences are:
- corrected switch logic for the mouse-buttons (was alsways closed, unless pressed)
- corrected holes for case (or backplate) mounting (0.0 works OK for most layouts,
- except for those with traditional staggering)
- cosmetic changes (those green fields don't look well in version 0.0)

[scottc]

Ah, I thought that the current prototypes were 0.1 already! Great. Will you offer the other parts (mouse buttons, etc) too?

How about the trackpoint? Can I use my own, like one from the IBM Space Saver rubber dome boards?

[teuf]

Do you have a rough estimate for the teensy/diode availability?

[7bit]

The trackpoint must fit through the hole, which is a bit less than 7mm in diameter.

I still don't have a cheap source for the buttons.

I will order controllers and other stuff in 2-3 weeks, depending on how many orders I get for the PCBs etc.

[scottc]

Interesting. Thanks for the info.

[7bit]

Did you measure the trackpoint yet?


I have 5.334mm if a mount plate is used and 7.112mm with only the PCB. If I make the hole wider, the G and H switches will lose stability.

[7bit]

I've made it wider!


Now, you all can send in your orders.

[scottc]

I will get on that tonight.

[Halvar]

On my PCB it says "Prototype - Version 0.0 - 2014-08-27" as on the photo above. This still means it's a v0.1 board, right?

[7bit]

Yes.

I don't have a photo of the version 0.1 yet.

[scottc]

I will get on that tonight.

I couldn't find my loose trackpoint last night, so today I will look for my second IBM Space Saver and try to remove the trackpoint from that one.

[7bit]

You don't need to!

I already know the dimension!

[scottc]

Oh, great! Will it fit?

[7bit]

The edges of the trackpoint are at most 4mm and the diameter is less than 4*sqrt(2)==5.65685424949238019520mm
The diamenter of the hole in the plate is 6mm.
I've tried with my thinkpad and found out that the trackpoint is not really moving, so this should be fine.

[scottc]

Excellent. That's good info. Can't wait to try it.

[7bit]

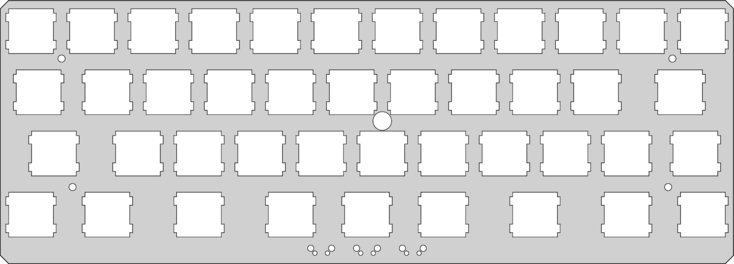

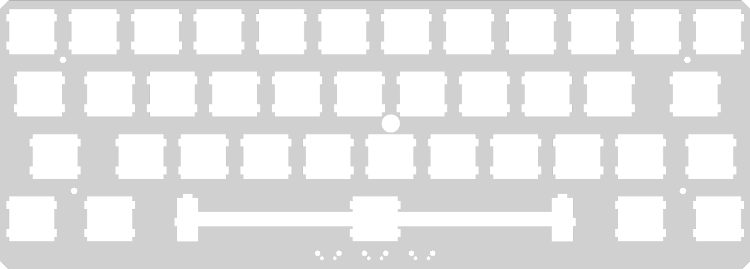

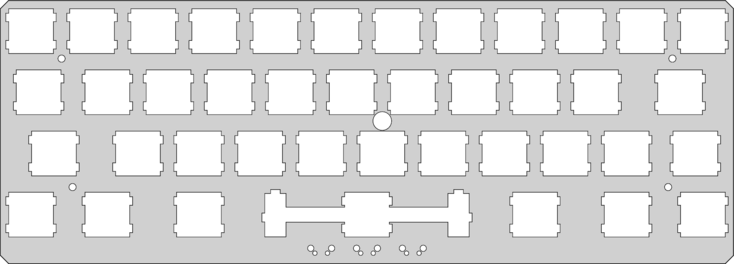

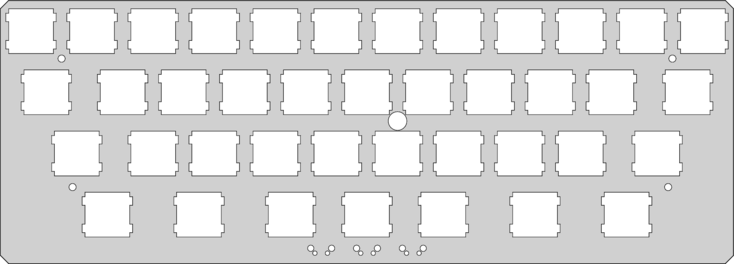

Plates are now available:

Code: Select all

HYPER/MICRO/7BIT      |normal plate
HYPER/MICRO/7BITH     |plate with trackpoint-hole
HYPER/MICRO/ANSI100   |normal plate
HYPER/MICRO/ANSI100H  |plate with trackpoint-hole
HYPER/MICRO/ANSI400   |normal plate
HYPER/MICRO/ANSI400H  |plate with trackpoint-hole
HYPER/MICRO/ANSI400M  |normal plate
HYPER/MICRO/ANSI400MH |plate with trackpoint-hole
HYPER/MICRO/ANSI625   |normal plate
HYPER/MICRO/ANSI625H  |plate with trackpoint-hole
HYPER/MICRO/ANSI700   |normal plate
HYPER/MICRO/ANSI700H  |plate with trackpoint-hole
HYPER/MICRO/SYM100    |normal plate
HYPER/MICRO/SYM100H   |plate with trackpoint-hole
HYPER/MICRO/SYM400    |normal plate
HYPER/MICRO/SYM400H   |plate with trackpoint-hole
HYPER/MICRO/SYM700    |normal plate
HYPER/MICRO/SYM700H   |plate with trackpoint-hole

Price: 10 EUR each.










[matt3o]

10 each?! what material?

[7bit]

Aluminium?


HYPER/MICRO/7BITH
HYPER/MICRO/7BIT


HYPER/MICRO/SYM100H
HYPER/MICRO/SYM100


HYPER/MICRO/SYM400H
HYPER/MICRO/SYM400


HYPER/MICRO/SYM700H
HYPER/MICRO/SYM700


HYPER/MICRO/ANSI100H
HYPER/MICRO/ANSI100


HYPER/MICRO/ANSI400MH
HYPER/MICRO/ANSI400M


HYPER/MICRO/ANSI400MH
HYPER/MICRO/ANSI400M


HYPER/MICRO/ANSI625H
HYPER/MICRO/ANSI625


HYPER/MICRO/ANSI700H
HYPER/MICRO/ANSI700

[matt3o]

wow pretty cheap, maybe because they are super small. where do you get them at the end?

[scottc]

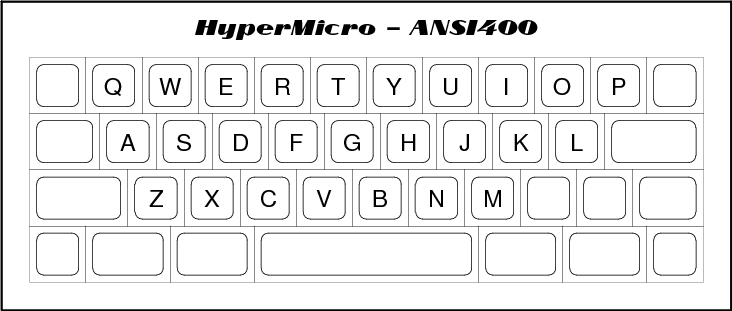

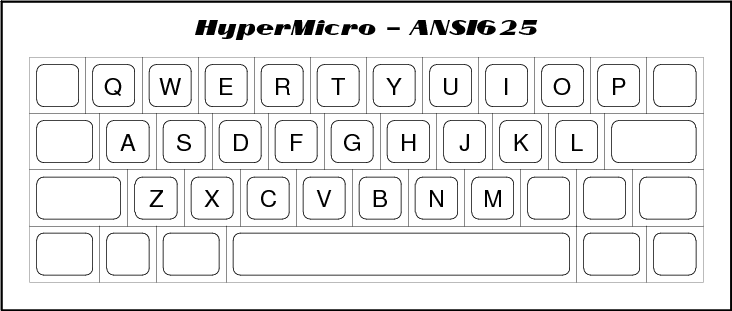

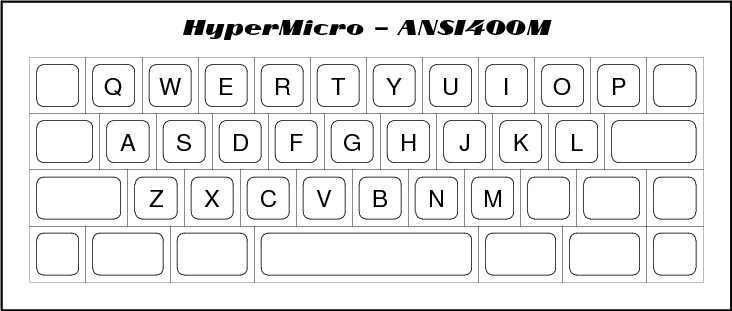

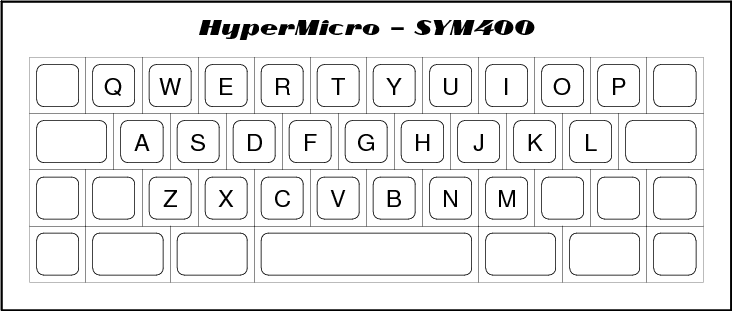

Can you provide images for the different layout types that correspond to the plates? I'm going to have to arrange another bank transfer

[7bit]

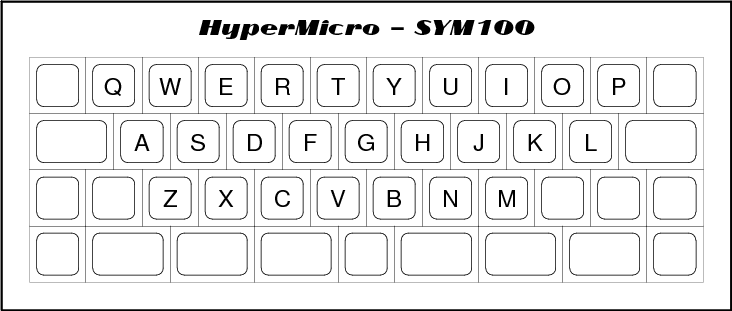

Test:

Spoiler:



Which looks better:
With or without black framelines?

[scottc]

With them, definitely.

[scottc]

What is the ETA for HYPER/MICRO/P1?

[7bit]

I've currently got only 2 orders, so I guess it will take a little bit more time ...

[scottc]

Are there any first-gen prototypes left for me to take instead?
