IDENTIFY THE KEYBOARD thread

motoko · 21 Mar 2021, 15:45

Looks like the terminal to Mother on the Nostromo!

SlowTyper · 21 Mar 2021, 19:19

Found these two on local ads...

On top one says IRIS, no labels behind. Seems quite old and looks like some IBM Model F clone.

TNT · 21 Mar 2021, 20:18

Looks very similar to Compaq's model F clones: wiki/Key_Tronic_Model_F_clone_series

SlowTyper · 21 Mar 2021, 21:13

TNT wrote: 21 Mar 2021, 20:18 Looks very similar to Compaq's model F clones: wiki/Key_Tronic_Model_F_clone_series

So foam and foil

XMIT · 21 Mar 2021, 21:15

Yes. The font and the lock LED location are giveaways.

Keybug · 22 Mar 2021, 17:11

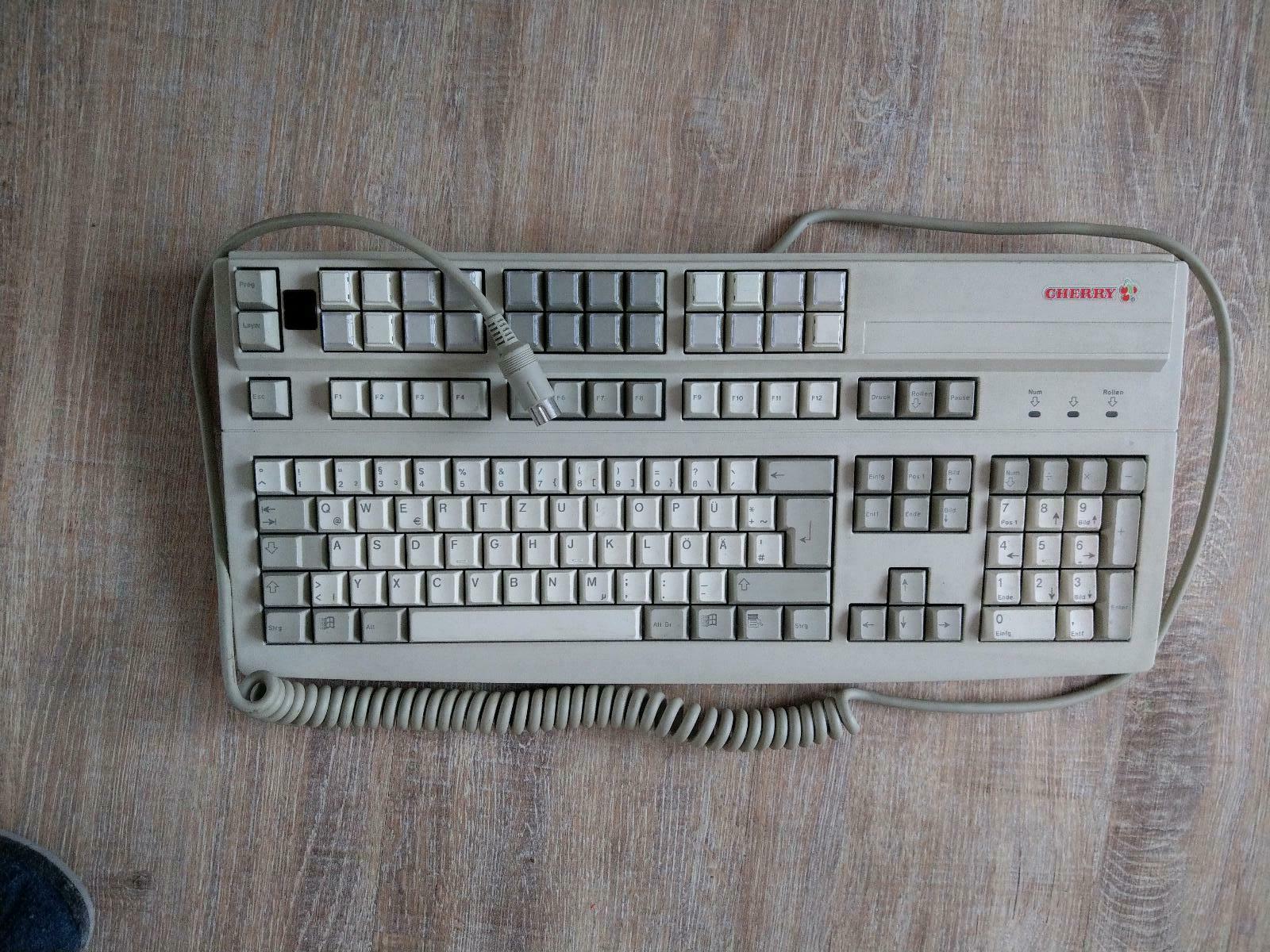

Strange Cherry fish, should be a pretty great little workhorse! Likely MX blacks under thin PBT keycaps. Does anyone know the model number?

kbdfr · 22 Mar 2021, 17:21

Keybug wrote: 22 Mar 2021, 17:11 Strange Cherry fish, should be a pretty great little workhorse! Likely MX blacks under thin PBT keycaps. Does anyone know the model number?

It’s a G81-8308, it has awful MY switches.
And yes, it is a pretty great little workhorse with 24 programmable keys, like its predecessor the G80-2100..

Keybug · 22 Mar 2021, 17:30

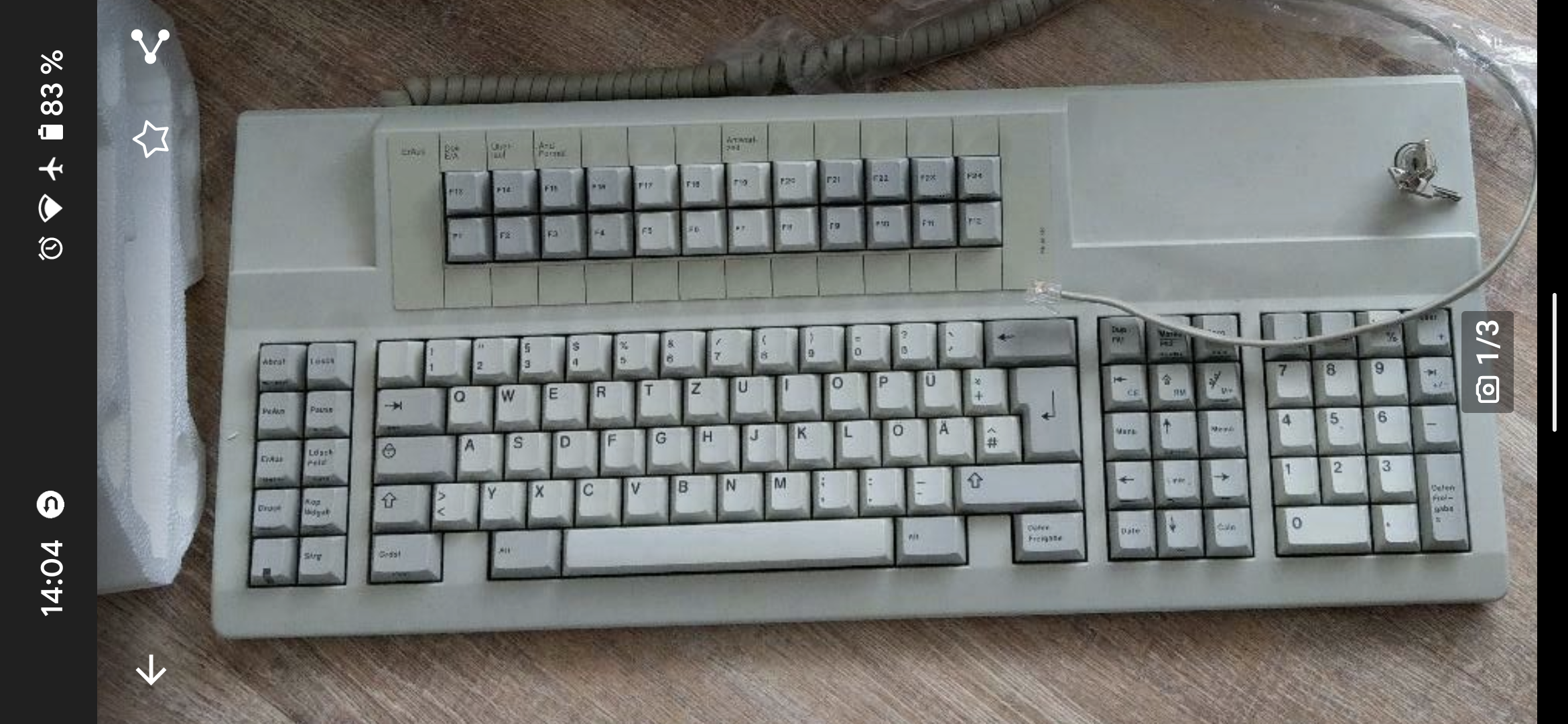

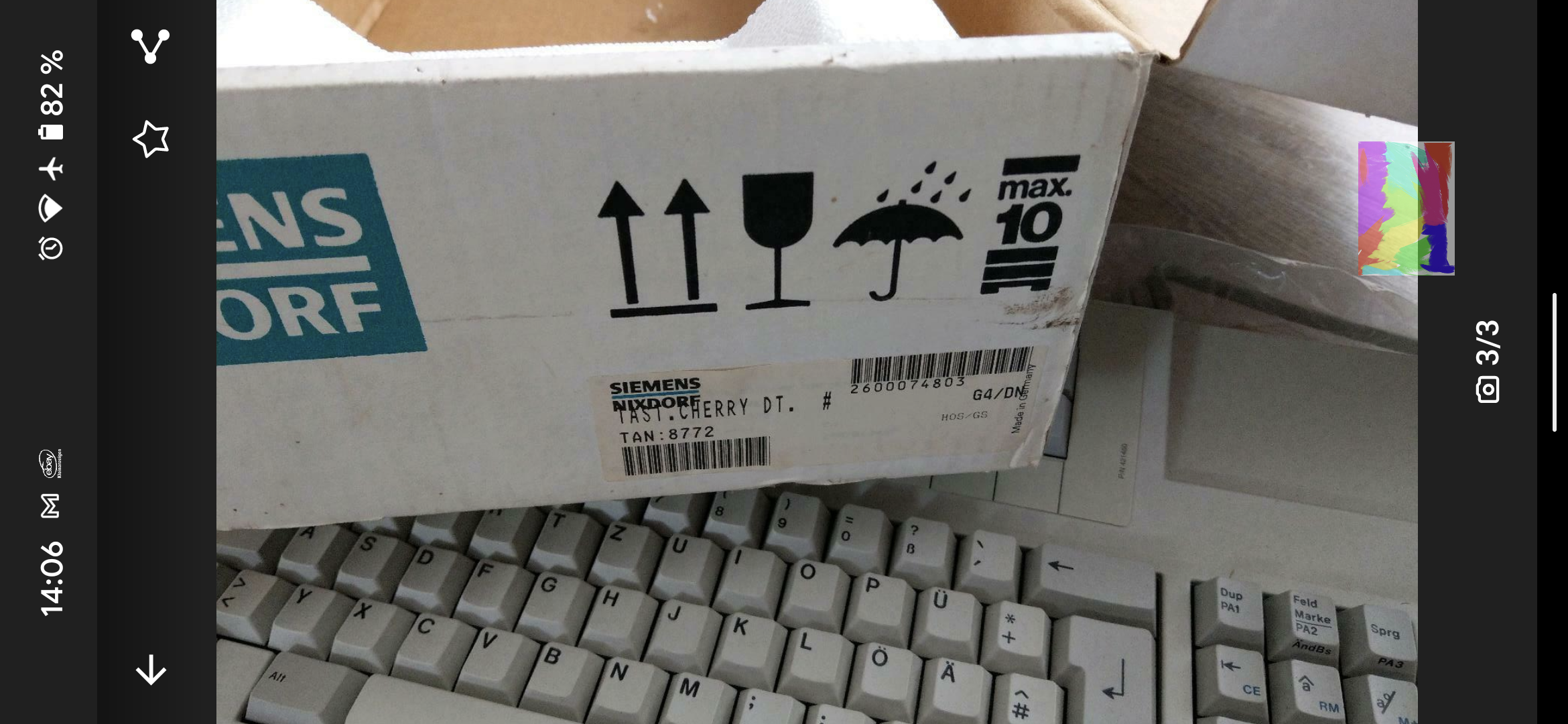

Damn! And to think I just missed this beautiful NIB mother of a Siemens terminal keyboard...

Keybug · 22 Mar 2021, 17:33

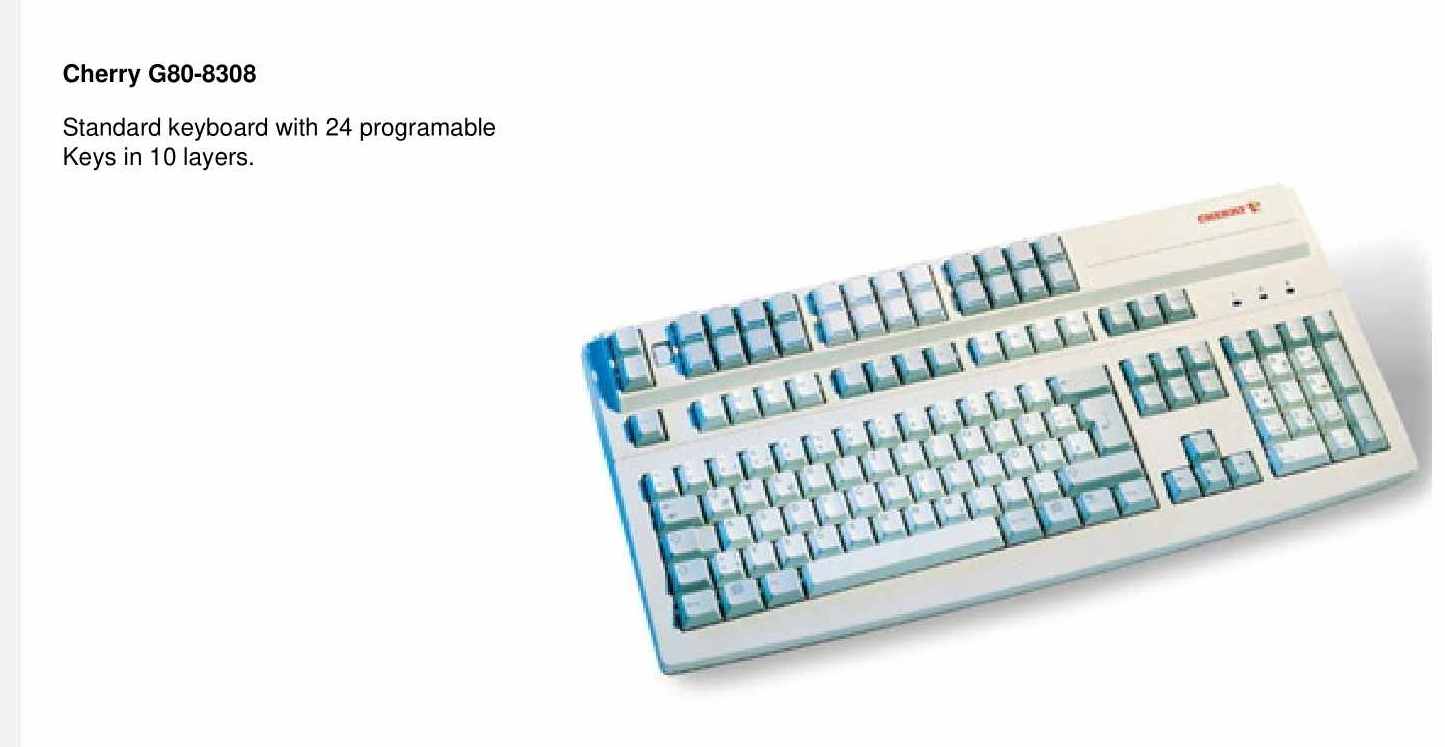

But then again, maybe it isn't G81!

Thanks for pointing me in the right direction, though.

dr-lipschitz · 22 Mar 2021, 20:59

Probably had nixie switches

photekq · 22 Mar 2021, 21:05

Keybug wrote: 22 Mar 2021, 17:30 Damn! And to think I just missed this beautiful NIB mother of a Siemens terminal keyboard...

So unlucky. That's such a beauty. I don't suppose there were any pictures of the label? I hope it turns up somewhere so we can at least identify it

dr-lipschitz wrote: 22 Mar 2021, 20:59 Probably had nixie switches

Please stop commenting this on every Siemens/Nixdorf branded Cherry board

The only boards with "Nixdorf blacks"/"Nixies" are the Nixdorf Softkeys boards [1] [2], which are easily differentiated from the Siemens/Nixdorf boards that were OEM'd by Cherry themselves.

DJSwayde · 22 Mar 2021, 21:09

dr-lipschitz wrote: 22 Mar 2021, 20:59 Probably had nixie switches

No, it probably did not.

austinmc32 · 23 Mar 2021, 01:03

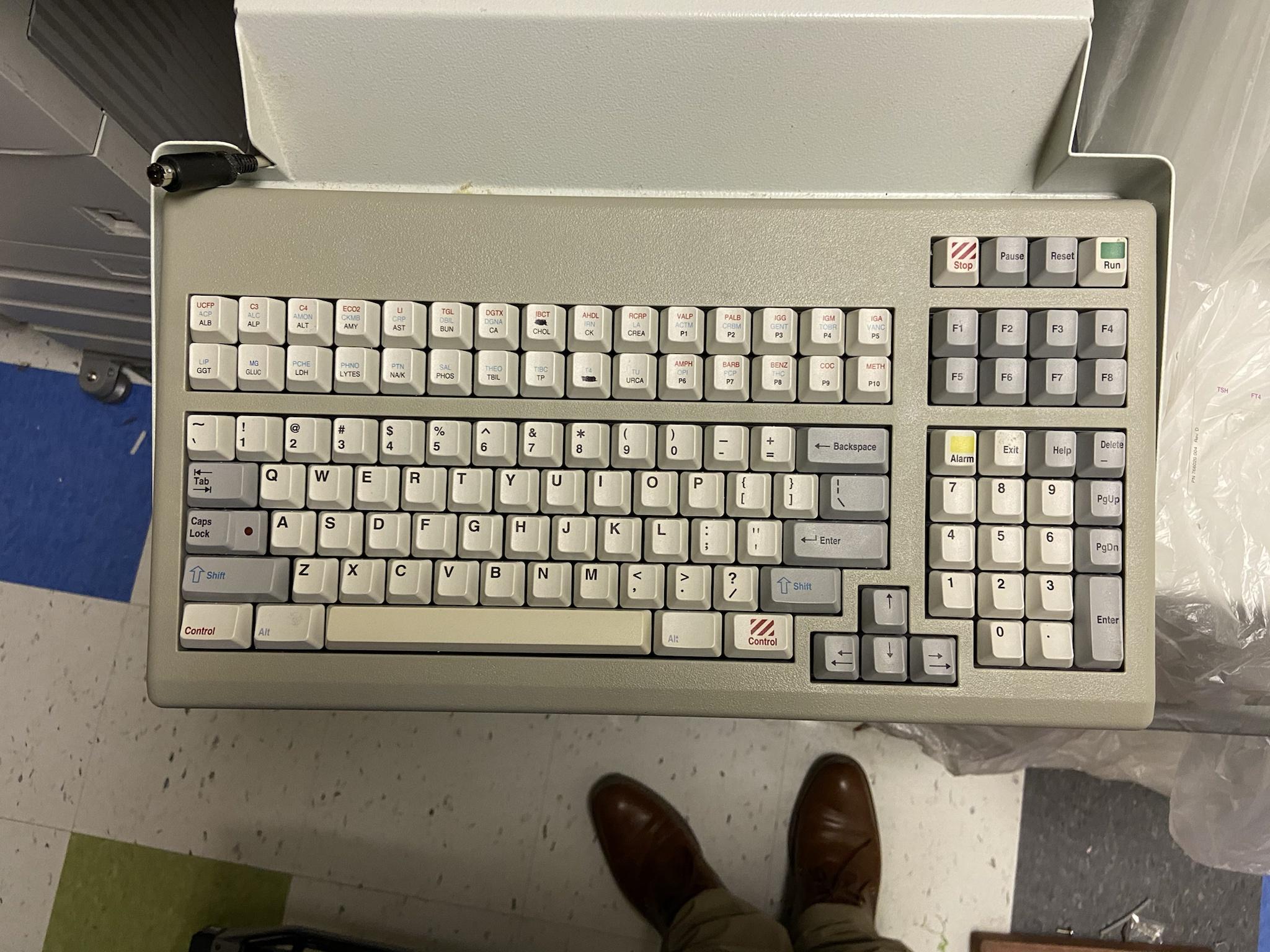

Found this at work. wanted to know if its worth anything.

Palatino · 23 Mar 2021, 01:04

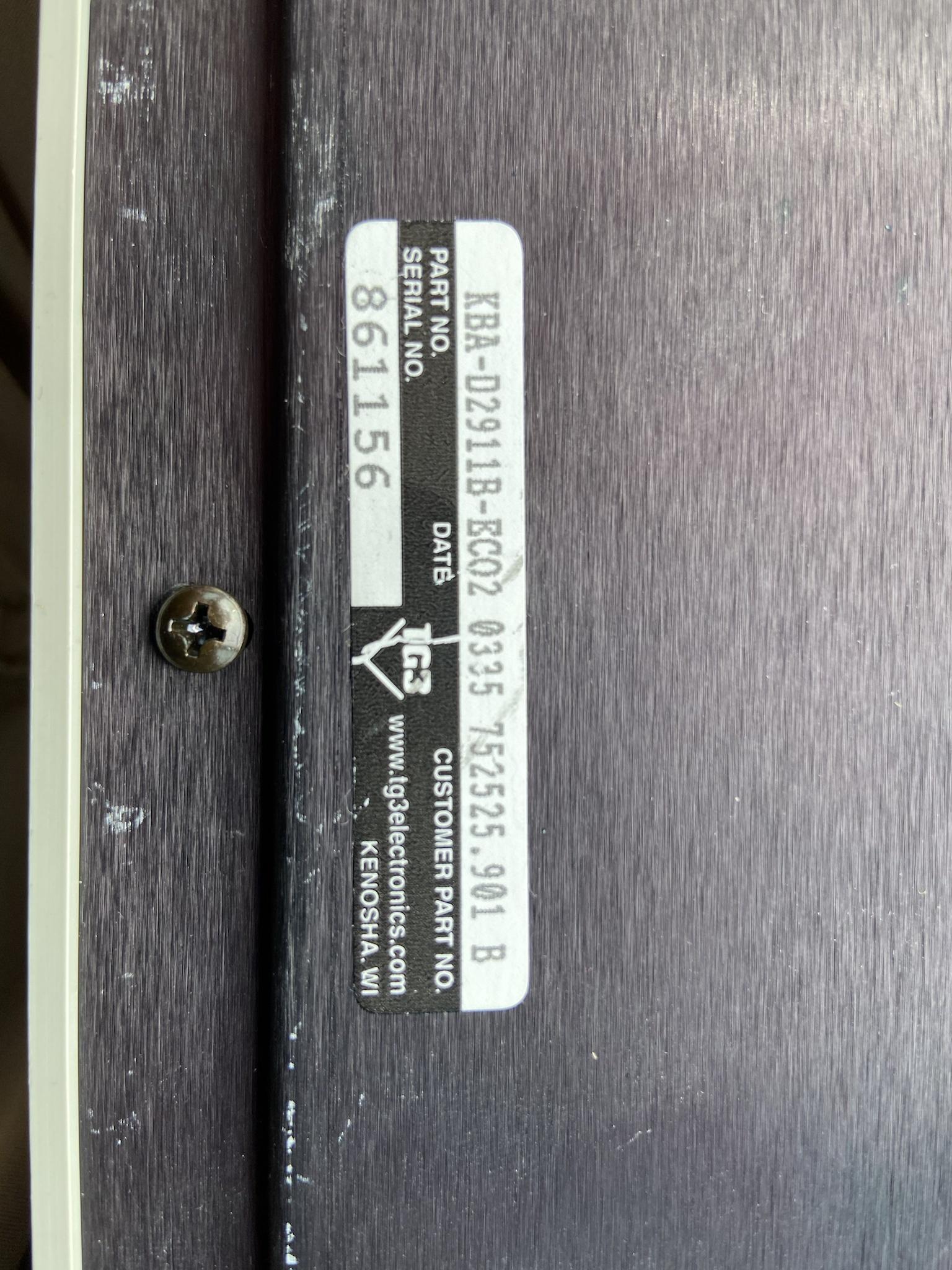

The keyboard for the Siemens Dimension RXL chemical analyser, made by TG3 Electronics.

Palatino · 23 Mar 2021, 01:05

viewtopic.php?f=2&t=3779

Palatino · 23 Mar 2021, 01:08

They keycaps look nice - they would definitely get some interest on their own. As to the keyboard itself, it depends a bit on the connector and how usable it is. I for one like it: many strange buttons is a plus!

austinmc32 · 23 Mar 2021, 01:20

i like it too! honestly wouldn't mind selling it. But it is a ps2 connection on it. It was covered in plastic its whole life. sop the condition of it is very good.

kbdfr · 23 Mar 2021, 12:11

Keybug wrote: 22 Mar 2021, 17:33 But then again, maybe it isn't G81! Thanks for pointing me in the right direction, though.

The G80 version of the 8038 is not a Cherry model, but a modification made by a third party (don't remember the name at the moment), according to which they make them only with MX browns.

apb · 26 Mar 2021, 01:56

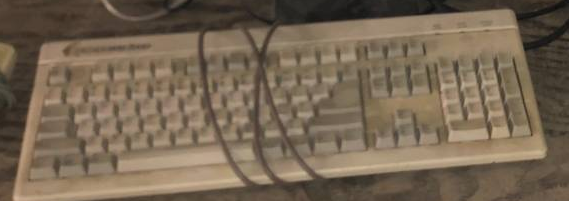

: gateway2kcl.png (203.61 KiB) Viewed 6489 times

any ideas? Looks like a Gateway anykey or some other rubberdome

edit: looks like it's this.
Gateway PS/2 2000 Keyboard (2196001-00-102)

Lekrafter · 26 Mar 2021, 03:51

Def dome

Keybug · 26 Mar 2021, 08:55

kbdfr wrote: 23 Mar 2021, 12:11 The G80 version of the 8038 is not a Cherry model, but a modification made by a third party (don't remember the name at the moment), according to which they make them only with MX browns.

Bugger, you were right, of course. G81 it is!

Still, a great little tank of a board. Not sure I will be able to find a use for it, though. Typing on it is horrible, of course.

kbdfr · 26 Mar 2021, 11:42

Keybug wrote: 26 Mar 2021, 08:55
kbdfr wrote: 23 Mar 2021, 12:11 The G80 version of the 8038 is not a Cherry model, but a modification made by a third party (don't remember the name at the moment), according to which they make them only with MX browns.
Bugger, you were right, of course. G81 it is! Still, a great little tank of a board. Not sure I will be able to find a use for it, though. Typing on it is horrible, of course.

The innards of a G80-8000 would fit, but while the G80 has a flat cable as a connector, the G81 has a plastic sheet with printed tracks. Apparently no way to make the contacts fit, I fear, even if the connections have the same measurements and probably the same configuration.

But well, I'm not a keyboard tinkerer, of course.
Would be grateful for how-tos - preferably excluding soldering

hellothere · 26 Mar 2021, 16:18

austinmc32 wrote: 23 Mar 2021, 01:20 i like it too! honestly wouldn't mind selling it. But it is a ps2 connection on it. It was covered in plastic its whole life. sop the condition of it is very good.

PS/2 isn't a problem. PS/2 to USB adapters cost around $6 US. It would be nice if you remove a cap to show us the switches. I'm thinking Cherry, but I could be wrong.

Gotta love a keyboard that has both a "Meth" key and a "THC" key.

I'd probably put a bid on it, too. I also like lots of additional keys.

Go-Kart · 26 Mar 2021, 19:22

apb wrote: 26 Mar 2021, 01:56 gateway2kcl.png

any ideas? Looks like a Gateway anykey or some other rubberdome

edit: looks like it's this.
Gateway PS/2 2000 Keyboard (2196001-00-102)

Some regular Gateway 2000 boards feature Maxi Switch conductive dome with sliders.

Palatino · 28 Mar 2021, 12:42

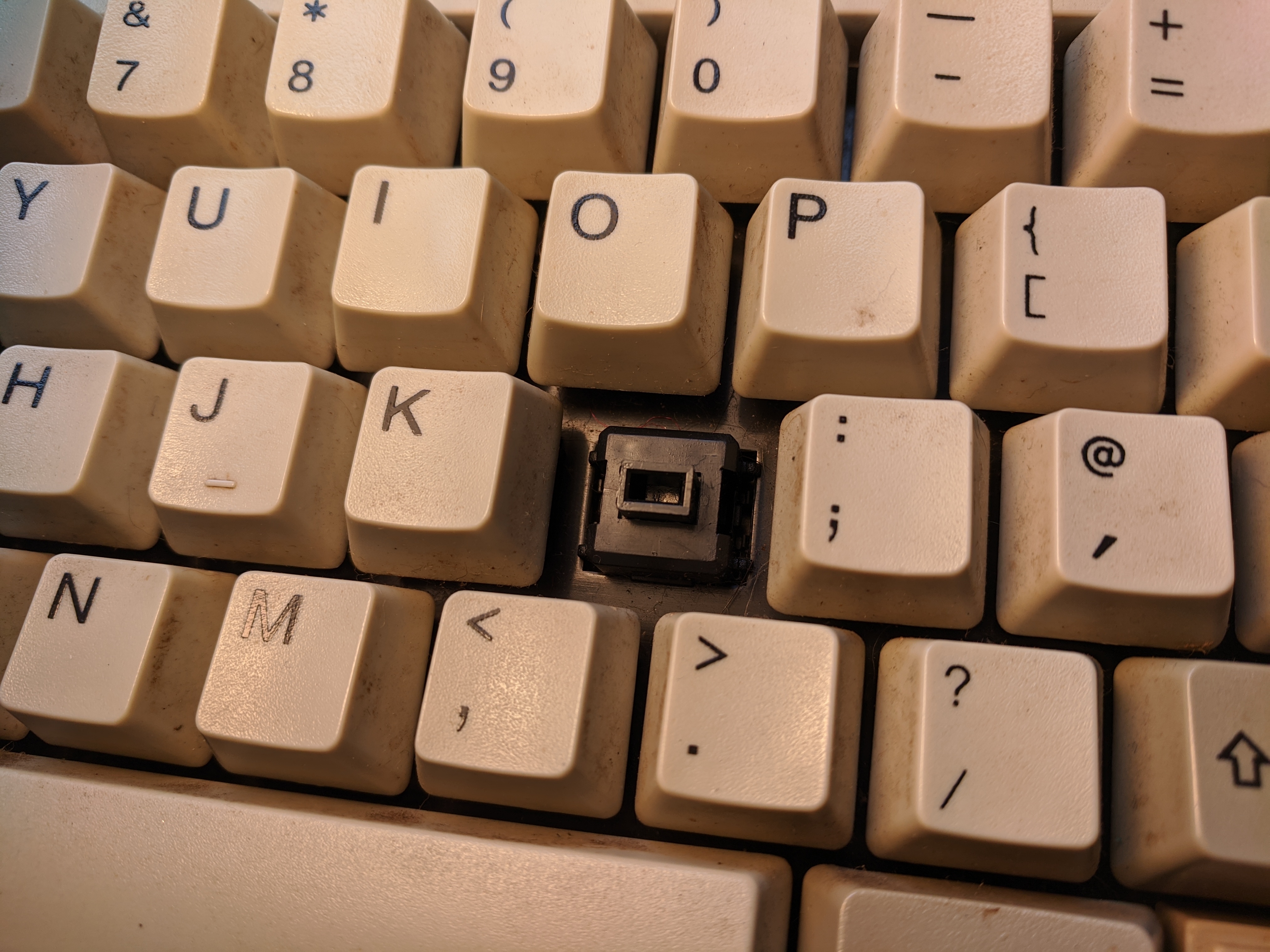

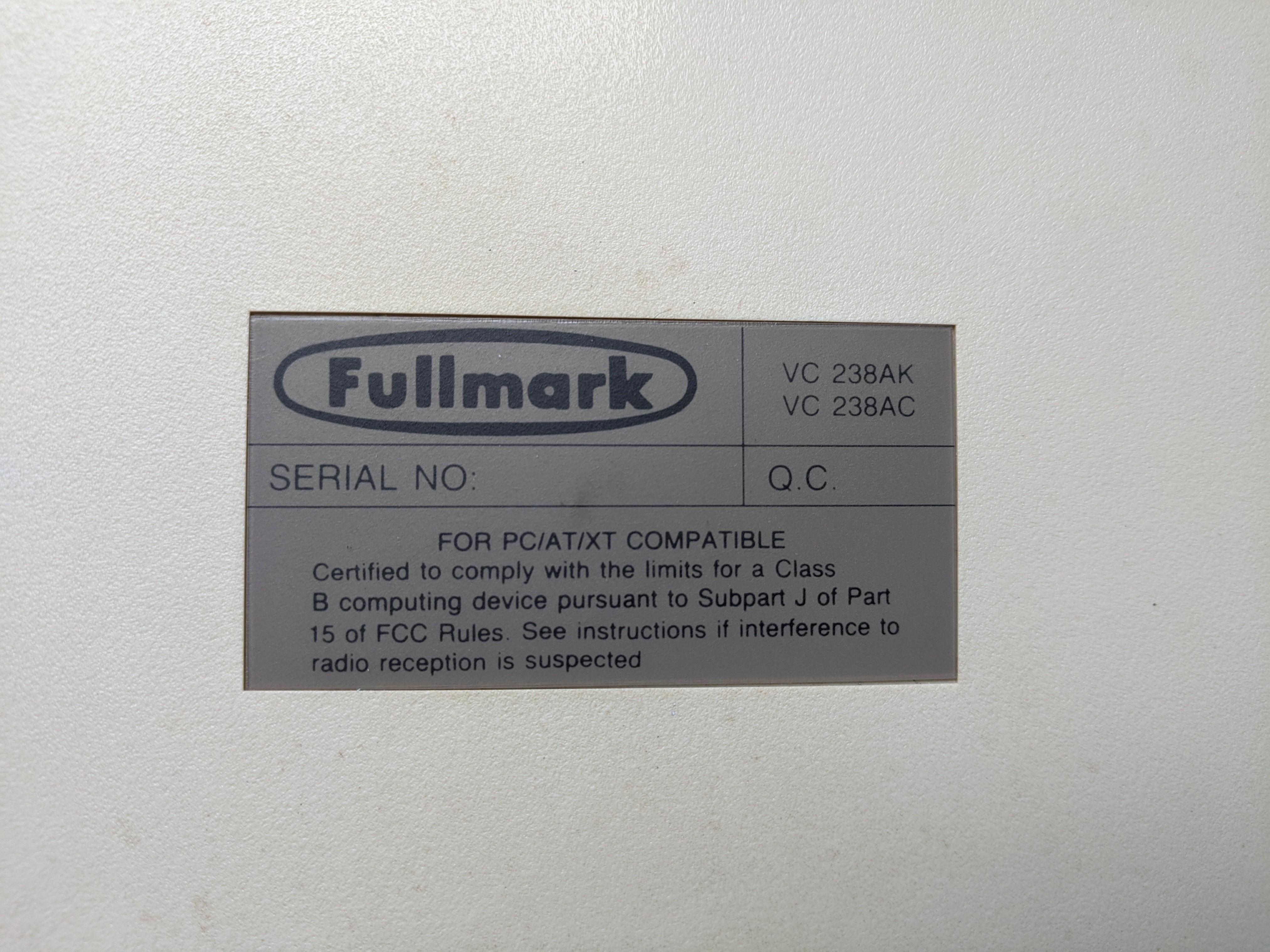

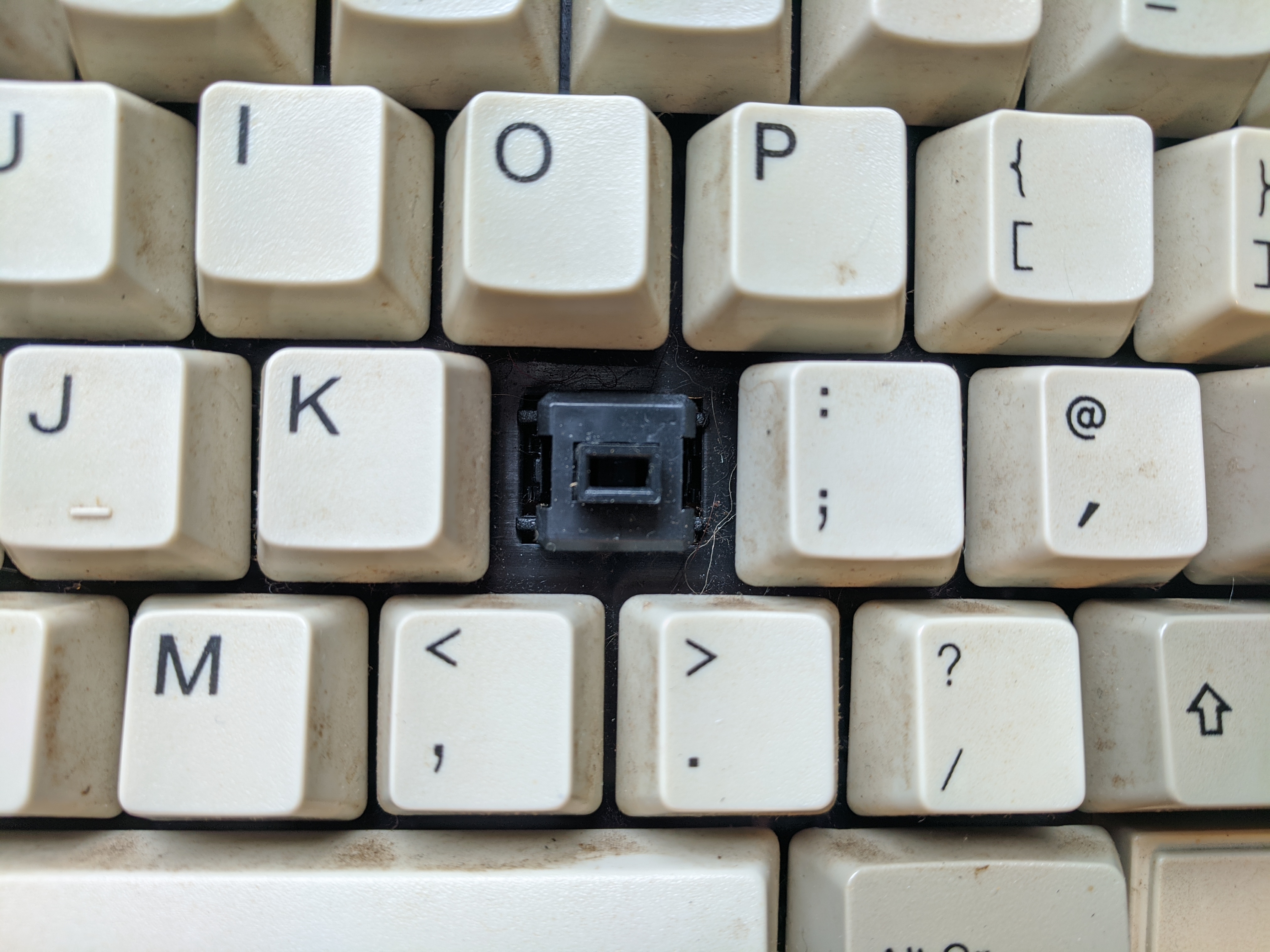

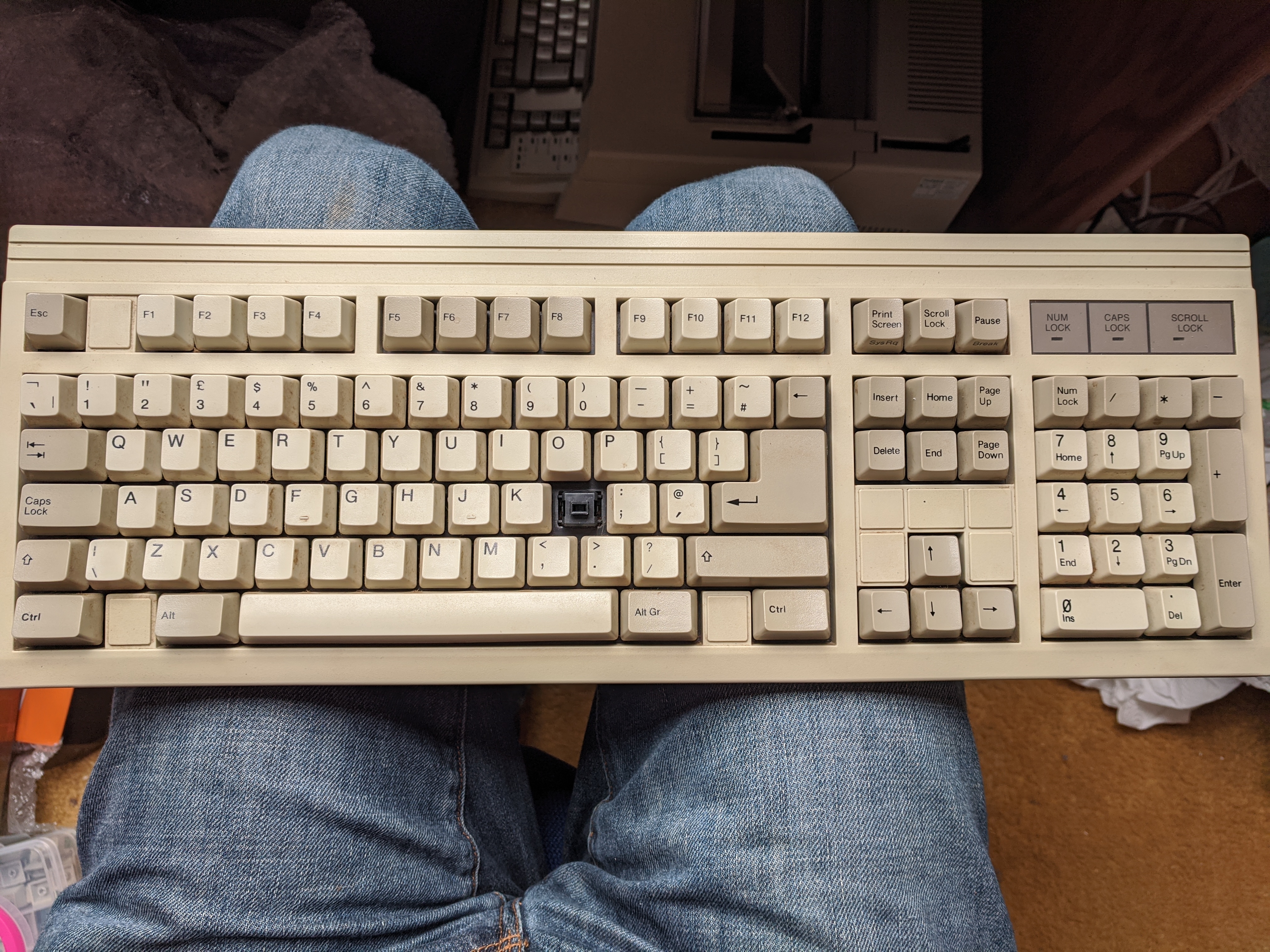

I've draw a blank on this switch - and the keyboard too. The switch is clicky, perhaps an Alps clone of some sort, but with a simple rectangular slider like an SMK 2nd Gen switch. Doesn't feel too bad at all. Does anyone recognize it?

Spoiler:

Go-Kart · 28 Mar 2021, 16:59

Palatino wrote: 28 Mar 2021, 12:42 I've draw a blank on this switch - and the keyboard too. The switch is clicky, perhaps an Alps clone of some sort, but with a simple rectangular slider like an SMK 2nd Gen switch. Doesn't feel too bad at all. Does anyone recognize it?
Spoiler:




I saw/bid on that Fullmark!

I had the guy shoot me a pic of the switches and it just looked like an Alps clone but I couldn't discern anything further due to bad picture quality. Now I can see them better, it still doesn't help all that much

Go-Kart · 28 Mar 2021, 17:00

Who made it/what does the PCB say?

EricDauphinais · 28 Mar 2021, 22:57

Jesseg wrote: 01 Jul 2020, 04:32
Gnho wrote: 30 Jun 2020, 22:15 Anyone has experience with this one?

The seller says it's Harris C1100 but I can't figure out what switches are in it. Thanks!
This looks a bit like NMB (space invader), but I could be wrong

Ordered one simply because I was too curious, now will need to figure out how to convert it...

zrrion · 29 Mar 2021, 00:16

Palatino wrote: 28 Mar 2021, 12:42 I've draw a blank on this switch - and the keyboard too. The switch is clicky, perhaps an Alps clone of some sort, but with a simple rectangular slider like an SMK 2nd Gen switch. Doesn't feel too bad at all. Does anyone recognize it?

It looks a lot like a KPT switch, but the top housing isn't quite right for that

4_404 · 29 Mar 2021, 01:28

Palatino wrote: 28 Mar 2021, 12:42 I've draw a blank on this switch - and the keyboard too. The switch is clicky, perhaps an Alps clone of some sort, but with a simple rectangular slider like an SMK 2nd Gen switch. Doesn't feel too bad at all. Does anyone recognize it?
Spoiler:

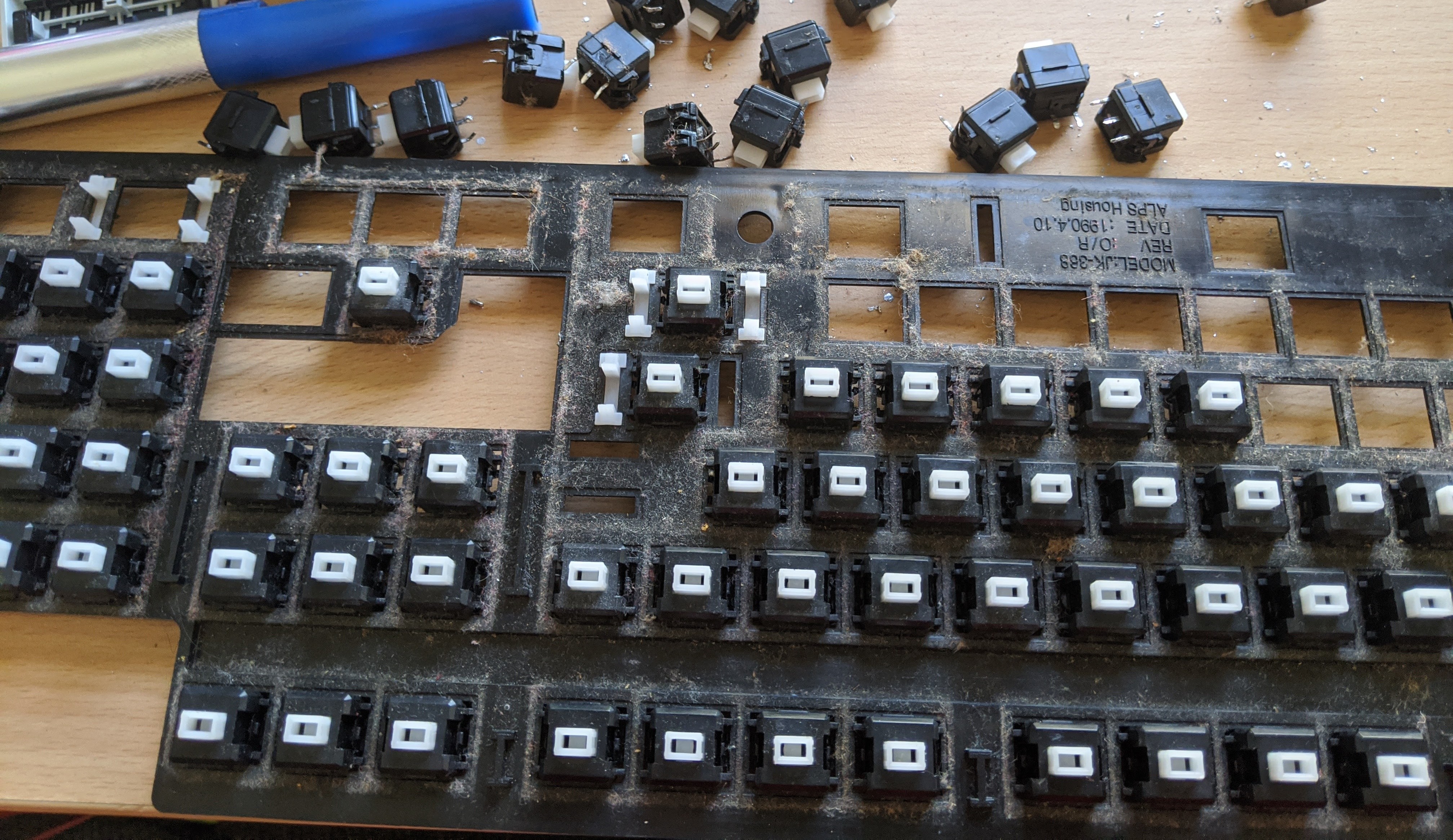

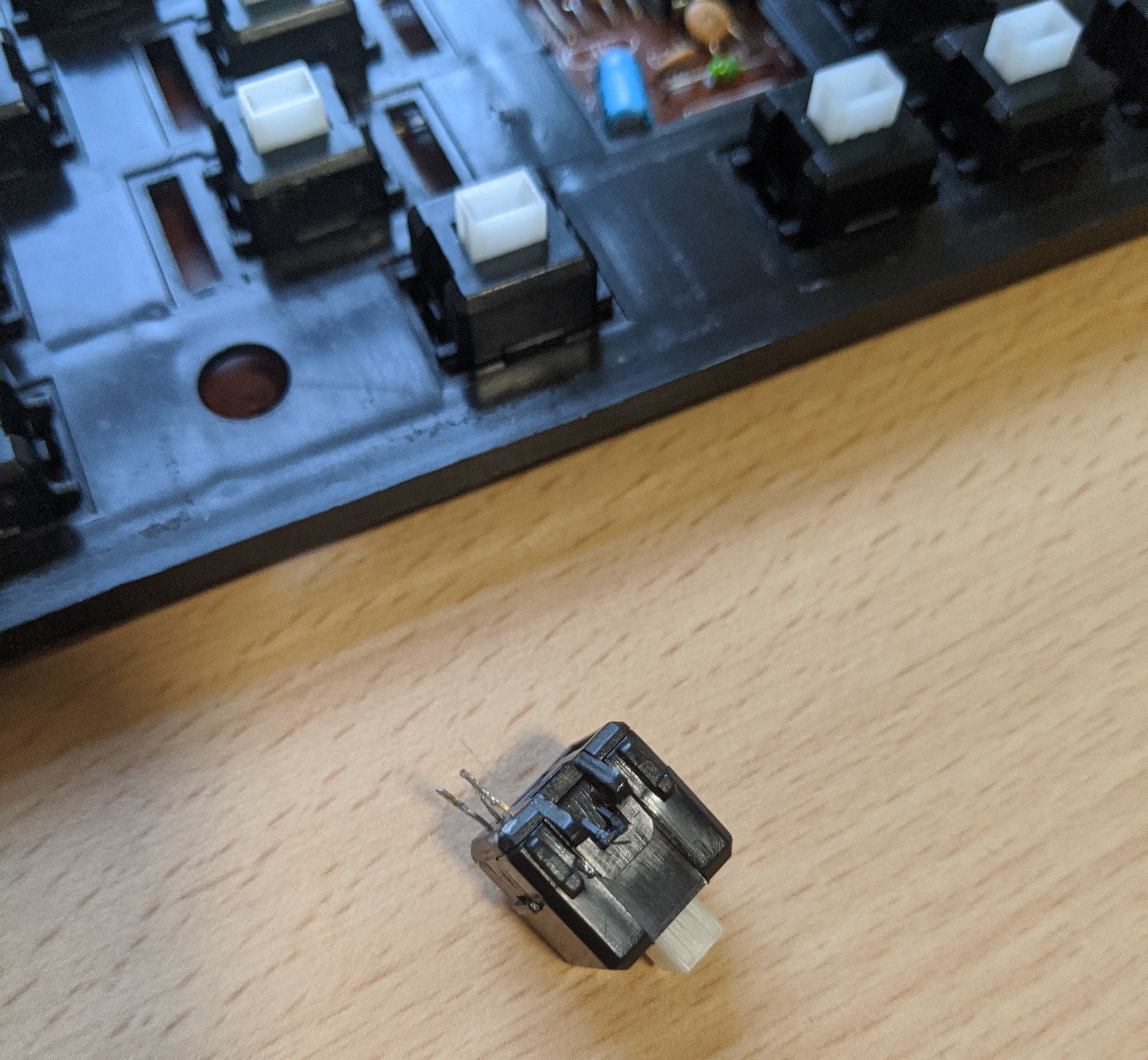

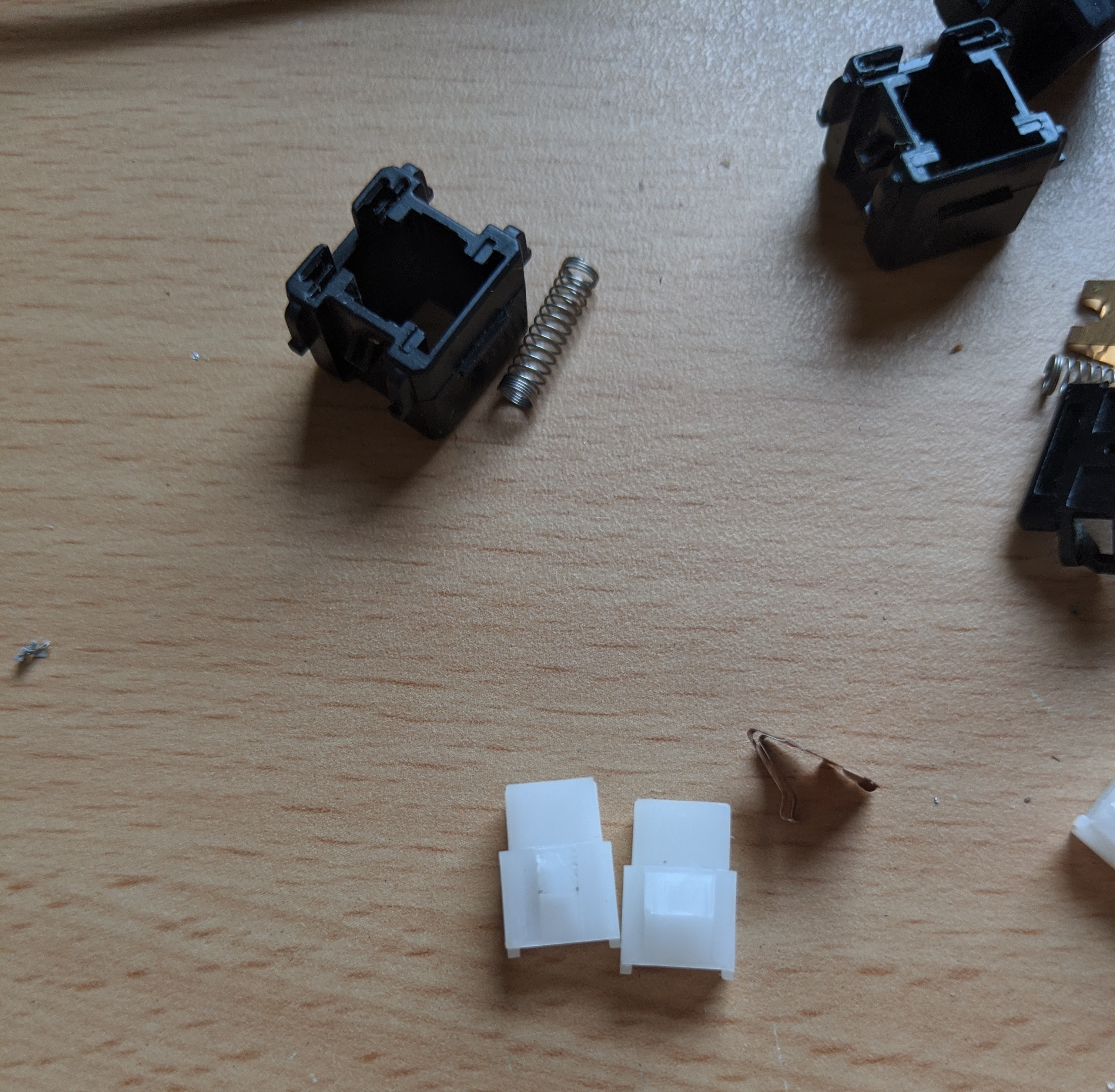

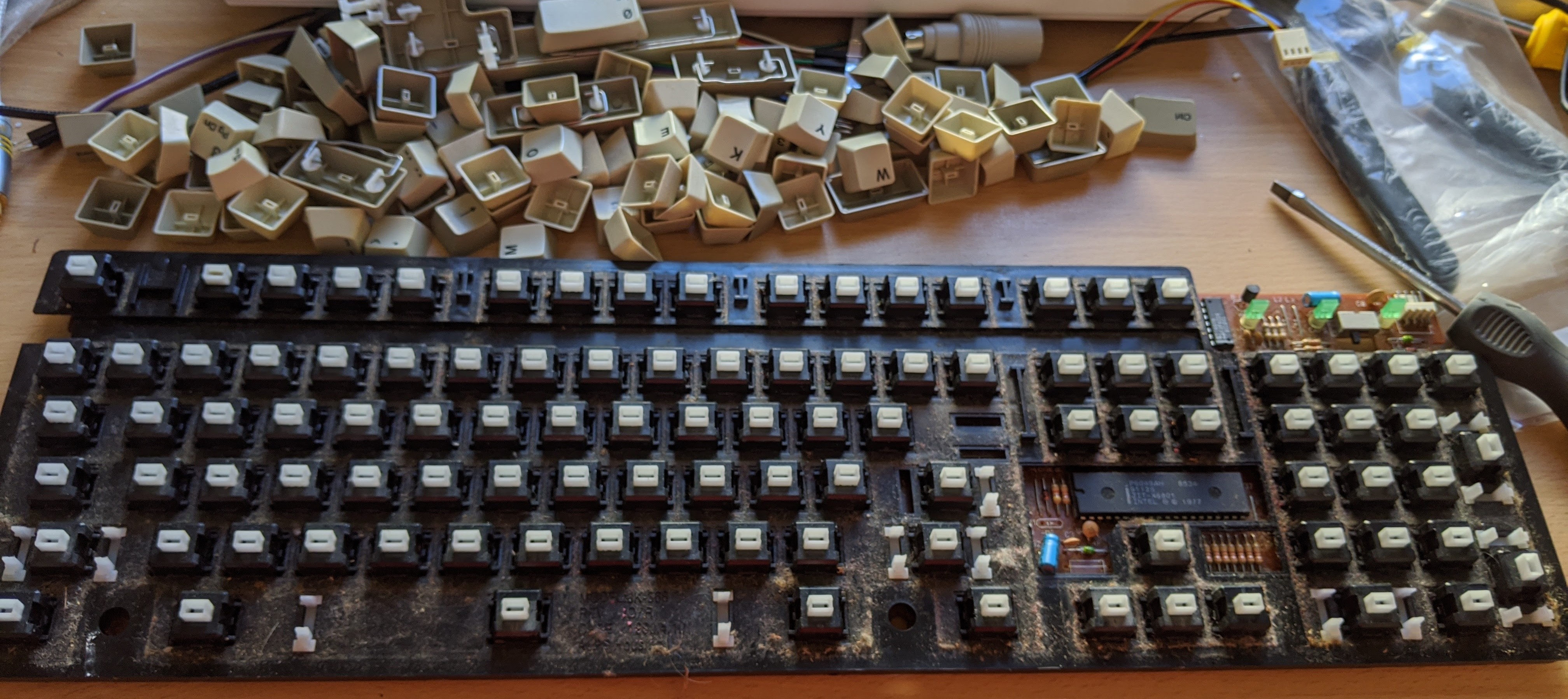

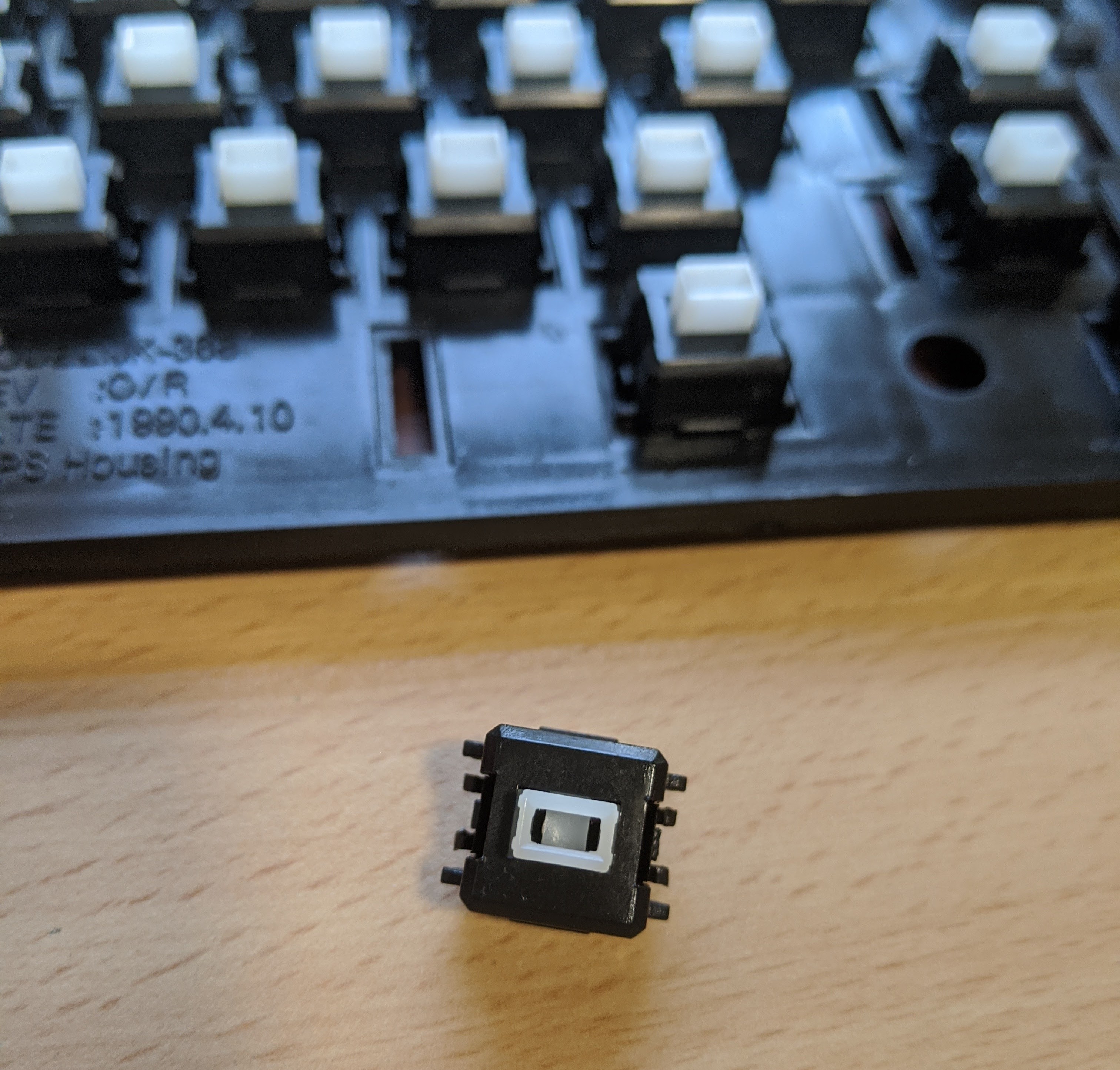

I have a Fullmark board with what looks like a white version of the same switch. I thought I identified the switch, but have subsequently forgotten what it was. My Fullmark board is identical to two other boards I have with ISNJK-168/268 FCC ID (Limtech) (one with SKCM white, one with AO2 clones), apart from the label and PCB - the same as wiki/Brain_KB-9001S, but without the RB88. Note the 368 number on the plate. Sorry for the garbage photos.

Spoiler:
